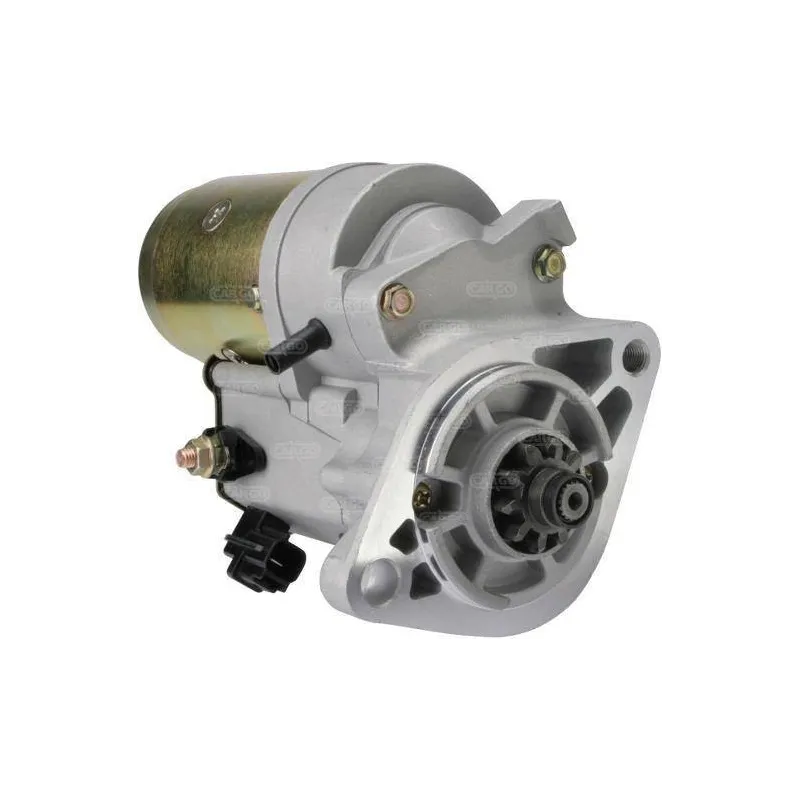

Starter 12V 2.2Kw 10 teeth Denso 228000-1780, 228000-5020, 228000-5021, 228000-5022
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
CHARACTERISTICS:
Electrical Information
Voltage 12
Kw 2.2

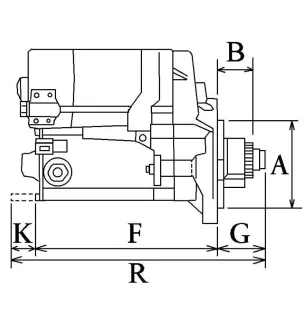

Physical Information
H No. of teeth 10
P Rotation CW
N Crown type Gr
A Mounting flange 82.50
I B+ M8
No. of fixing holes 2 (1)
B Starter distance 18.50

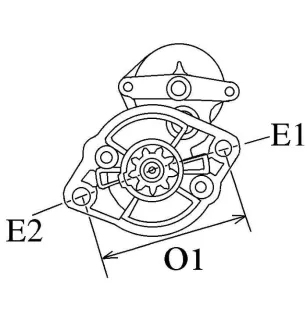

E Mounting hole 1 mm M12-1.25
E Mounting hole 2 mm 13.50
F Distance/rear 154.00
G Distance/front 30.00
M Mounting bracket No
O Distance mm 130.00
R Overall length mm 235.00
Information Catalogues
Clutch type Sec
Launcher type Steel
Product info Bn
Waterproof No
Oil sealed No
REPLACES THE FOLLOWING PART NUMBERS:
228000-1780 Denso
228000-5020 Denso
228000-5021 Denso
228000-5022 Denso 228000-5023 28100-0L041 28100-67030
428000-0260 Denso
428000-2311 Denso
428000-2313 Denso
JS1154 HC-PARTS
COMPATIBLE WITH THE FOLLOWING VEHICLES:
Toyota, Light Vehicle EU
Toyota, Light Vehicle Asia and Oceania
