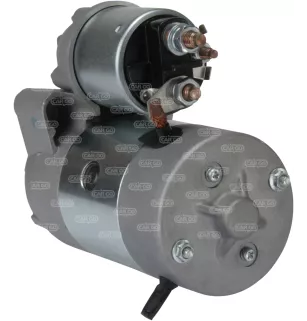

Starter 12V 0.9KW 8/9DENTS MAKO 063103002000, 063103007000, Magneti Marelli 063103002010, 063103007010

starter 12V 0.9kW 8/9DENTS MAKO 063103002000, 063103007000, Magneti Marelli 063103002010, 063103007010

• Brand: Bosch
• new starter
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
Voltage 12
kw 0.9

Physical information
H no. Det 8.9
P Rotation CW
n Type Crown DD/GR
A Flasque Montage 64.10
I B+ M8

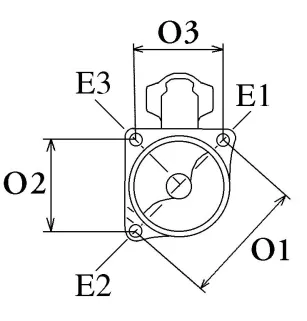

No. Fixing holes 3 (3)
b
e Montage hole 1 mm M8
e mounting hole 2 mm M8
e Montage hole 3 M8

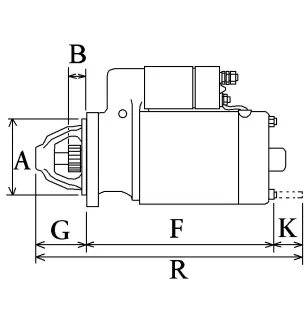

F Distance/rear 152.00
g DISTRIBUTION/GISTER 47.00
M Mounting support No
o distance mm 105.00
o distance 2 71.50
o distance 3 72.50
R Total length mm 206.00

Information Catalogs
Type steel launcher
info Product BN
Waterproof to the water no
Non -sealed oil

replaces the following references: {006
06310300
063103002010 Magneti Marelli
063103007000 Mako
063103007010 Magneti Marelli
063216731000 Mako
063223101000 Mako
46231540 Fiat
46417006 Fiat
46475793 Fiat
46774415 Fiat
50246648 Magneti Marelli
63103002 Magneti Marelli
63103002 MAKO} 63103007 Magneti Marelli
63103022 Magneti Marelli
63222831 Magneti Marelli
63222833 Magneti Marelli
63223001 Magneti Marelli
63223031 Magneti Marelli 63223033 Magneti marelli
63223085 Magneti Marelli
63223101 Magneti Marelli
63223101 Mako
63223303 Magneti Marelli
7773812 Fiat} CS975 HC-Parts
NSB132 LUCAS

Compatible with the following vehicles:
CITROEN, light vehicle eu
fiat, light vehicle eu
LANCIA, EU
vehicle
