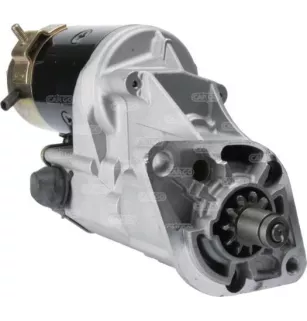

12V 2.7KW starter Denso 228000-0570, 228000-0571, 228000-0572, 228000-0573

starter 12V 2.7KW 11DENS DENSO 228000-0570, 228000-0571, 228000-0572, 228000-0573

• Brand: Bosch
• new starter
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
Voltage 12
Kw 2.7

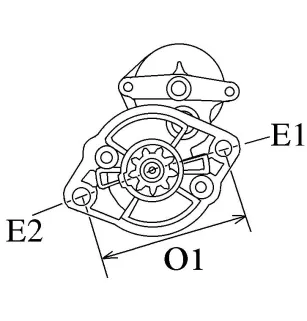

Physical information
H no. Dethoire 11
P Rotation CW
n Type crown Gr
a flask mounting 82.50
I B+ M10
No. Fixing holes 2 (1)
B Assembly 1 mm M12-1.25
e mounting hole 2 mm 13.00
F Distance/rear 193.00
g DISTRIBUTION/front 43.00
M mounting support no
o distance mm 135.00
R Total length mm 305.00}}} replaces the following references:
228000-0570 DENSO
228000-0571 DENSO
228000-0572 DENSO
228000-0573 DENSO
228000-0574 DENSO
228000-0575 DENSO
228000-1590 DENSO
228000-1591 DENSO
228000-1660 DENSO
228000-1661 DENSO
228000-9050 DENSO
28100-54320 Toyota
28100-54370 Toyota
28100-54390 Toyota
28100-54470 Toyota
28100-54490 Toyota
28100-54491 Toyota
HC-Parts

Compatible with the following vehicles:
toyota, light vehicle eu
toyota, light vehicle Asia and Oceania

}
