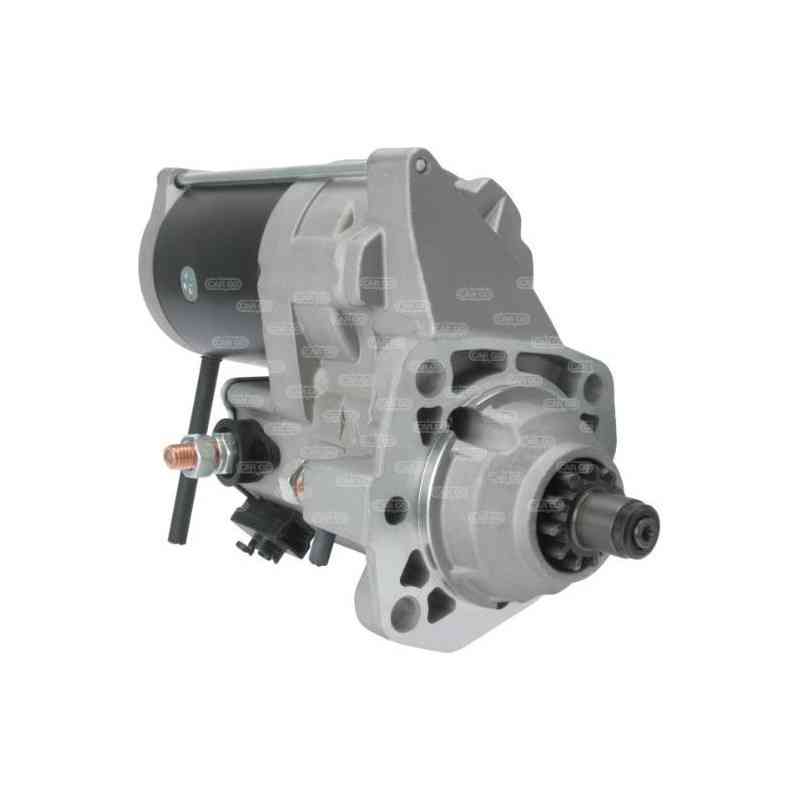

starter 24v 7.5kW 11DENS DENSO 228000-6560, 228000-6561, 228000-7410, 228000-7411
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Characteristics:
Electric information
Voltage 24
kw 7.5
Physical information
H no. Dethoire 11
P Rotation CW
n Type crown Gr
a flask mounting 89.00
I B+ M12
No. Fixing holes 3 (0)
B of mounting 1 mm 11.50
e Montage hole 2 mm 11.50
e Montage hole 3 11.50
F Distance/rear 160.50
g DISTRIBUTION/GISTER 74.50
S B- M12
M Mounting support NO
o distance mm 127.30 {0010 O distance 2 89.70
o distance 3 89.85
R Total length mm 319.00
Information Catalogs
Type of damp clutch
type Steel launcher
info Product BN
Waterproofing yes
Sealed oil yes
} Replace the following references:
228000-6560 DENSO
228000-6561 DENSO
228000-7410 DENSO
228000-7411 DENSO
228000-7412 DENSO
228000-7413 Denso} John Deere
re501060 John Deere
re501150 John Deere
re69705 John Deere
re70958 John Deere
Se501406 John Deere
Ty24443 John Deere}
Compatible with the following vehicles:
John Deere, Marine
John Deere, Industry
John Deere, Agricultural Machines
}
