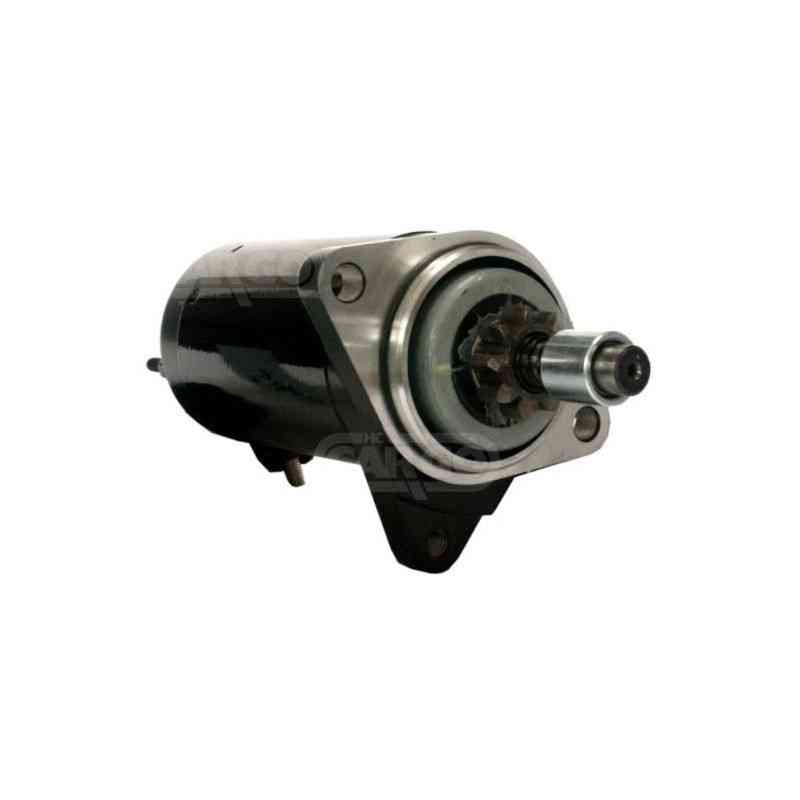

Starter 12V 0.6KW 9DENS DENSO 228000-4550, Bombardier 278-000-484, 278-000-485

starter 12V 0.6kW 9DENS DENSO 228000-4550, Bombardier 278-000-484, 278-000-485

• Brand: Bosch
• new starter
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
Voltage 12
kw 0.6

Physical information
H no. Detholes 9
P rotation in the opposite direction of the watch needles
n Type crown DD

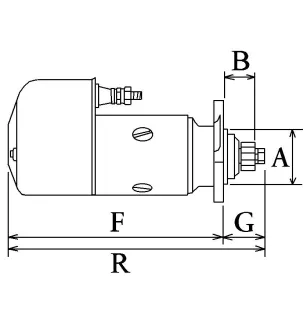

a flask mounting 61.00
I B+ M6

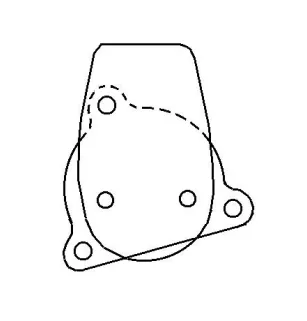

No. Fixing holes 3 (1)
b

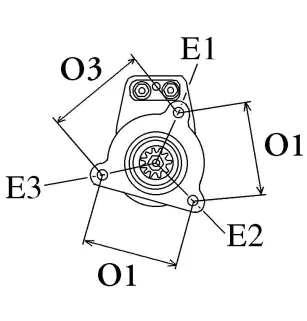

e mounting hole 1 mm 9.50
e mounting hole 2 mm 9.50
e Montage hole 3 M8
F Distance/rear 146.00
g DISTRIBUTION/GEDIBIENCE 57.50
M Mounting support No
o distance mm 89.90} o distance 2 56.60
o distance 3 77.50
R Total length mm 205.50

Information Catalogs
Type steel launcher
Info Product BN
Waterproof to the water NO
NO SCEELDED OIL

replaces the following references:
228000-4550 DENSO
278-000-484 Bombardier
278-485 Bombardier

Compatible with the following vehicles:
Bombardier, Miscellaneous
Sea Doo, Marine}
