12v 2.5kW 9DRAGE starter Iskra 11,130.510, 11,130.618, 11.139.456, Real 20404082

starter 12v 2.5kw 9derts Iskra 11.130.510, 11.130.618, 11.139.456, Real 20404082

• Brand: Bosch
• new starter
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
Voltage 12
kw 2.5

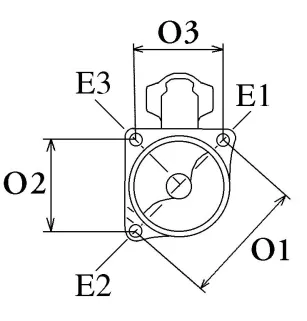

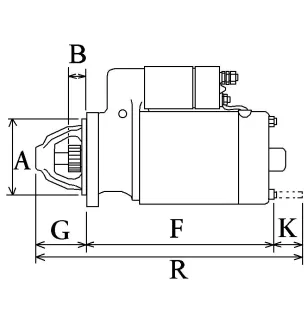

Physical information
H No. Detholes 9
P Rotation CW
N type Crown DD
a flask mounting 109.70
I B+ M10
No. Fixing holes 3 (0)
B of mounting 1 mm 12.00
e Montage hole 2 mm 12.00
e Montage hole 3 12.00
F Distance/rear 258.00
g DISTRIBUTION/GISTER 75.00
S B- M8
M Mounting support NO
o distance mm 146.00 {0010 Distance 2 103.00
o Distance 3 103.00
R Total length mm 340.00

Information Catalogs
Type Steel launcher
Info Product BN
Waterproof
Non -sealed oil

replaces the following references:
11.130.510 Iskra
11.130.618 ISKRA
11.139.456 ISKRA
20404082 Real
27430 LUCAS
27430A LUCAS
27430B Lucas
5111319 Fiat} 63217121 Magneti marelli
azj3145 iskra
azj3195 iskra
azj3462 iskra
CS795 HC-PARTS
V450DT FIAT
} Following vehicles:
Farymann, Marine
Farymann, Industrial engine
fiat, Agricultural machines
fiat-allis, agricultural machinery
Goldoni, Agricultural machinery
