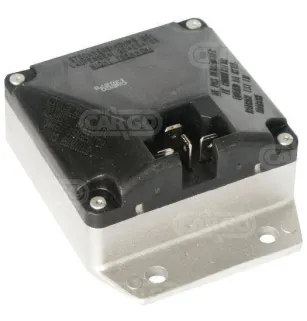

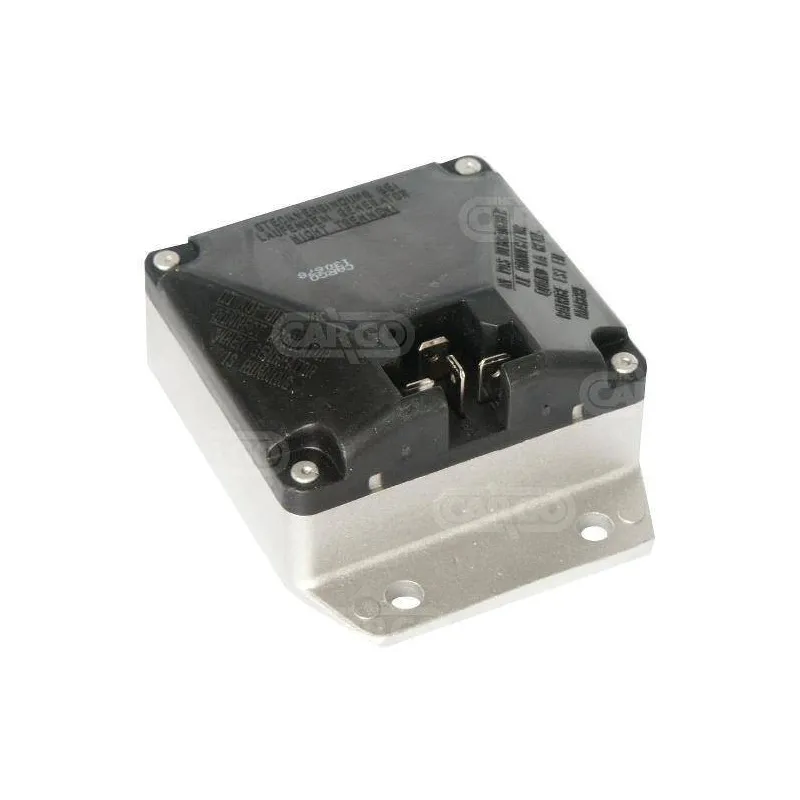

28 Volts - Compatible: Bosch: 0120400617, 0120400720 - Denso: 100211-8270
Delivery policy
(edit with the Customer Reassurance module)
Security policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
FEATURES:
Electrical Specifications
Voltage 28
Voltage Adjustment 28.3
Physical Specifications
Regulator Connector Electronics
E Dist. holes mm 40.00
REPLACES THE FOLLOWING PART NUMBERS:
Mercedes benz: 0011547006, 0011548106, 0011548806, 0011549106, 002-154-02-06, 0021540206, 0021540506, 011-154-88-06, 11548806, 21540206, 350-547-71-02, 3505477102.
Iveco: 01162829.
Bosch: 0192033001, 0192033002, 0192033003, 0192033004, 0192033005.
Ika: 1.6064.1.
Remco: 101-1151, 1011151.
Volvo: 102746, 241630, 249264, 4785003, 870864.
Iskra: 11125026, 11125105, AER2907, AER3002.
Khd: 1162829, 2404417, 8122110, B25N921175, B25N92117J, N92117TI, S1H7615, S4H7615.
Deutz: 1162829, 2404417, 8122110, S4H7615.
Cargo: 130677.
Lucas: 21931015, 21931016, 21931020, 21931021, NCB406, NCB407.
Renault: 26563108, 5000462007, 7701012214, 7701015670.
Massey Ferguson: 2868511M91, 2945680M1.
International harv.: 3144931R1.
Waiglobal: 35-9128.
Daf: 4785003.
Motorola: 505-057, 505-058, 9RH8091, 9RH8092.
Komatsu: 6102617.
Liebherr: 6201558, 6912701.
Magneti marelli: 64800004, 64800005, 940038001, 940038002, AMP0005.
Mando: 81256010008, 81256010010, 81256010011, 81256016007, 90801101322.
Man: 81256010010, 81256010011, 90801101322.
Fiat: 82301179.
Krauf: ARB0034.
Transpo: IB033, IB034, IB034-1.
Mario Ghibaudi: RTR3108, RTR3137.
Valeo: SCON.R3137.
Mobiletron: VR-B199-3, VR-B199-4.
COMPATIBLE WITH THE FOLLOWING ALTERNATORS:
Bosch: 0120400617, 0120400720, 0120400754, 0120400774, 0120400791, 0120400796, 0120400797, 0120400805, 0120400826, 0120400830, 0120400843, 0120400846, 0120400876, 0120400877, 0120400887, 0120400888, 0120600509, 0120600512, 0120600515, 0120600521, 0120600525, 0120600527, 0120600530, 0120600531, 0120600532, 0120600533, 0120600534, 0120600540, 0120600541, 0120600542, 0120600543, 0120600544, 0120600547, 0120600554, 0120600556, 0120600558, 0120600560, 0120600562, 0120600564, 0120600565, 0120600566, 0120600567, 0120600570, 0120600571, 0120600580, 0120600581, 0120600582, 9120080074.
Denso: 100211-8270, 100211-8700, 1002118270, 1002118700.
Data sheet
Specific References
Reference: 810.503.092.010
Brand: Plus Line
28 Volts - Compatible: Bosch: 0120400617, 0120400720 - Denso: 100211-8270
