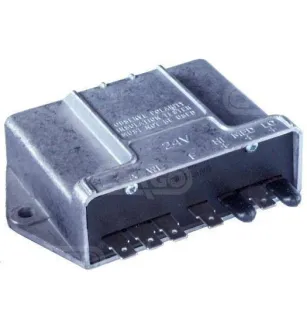

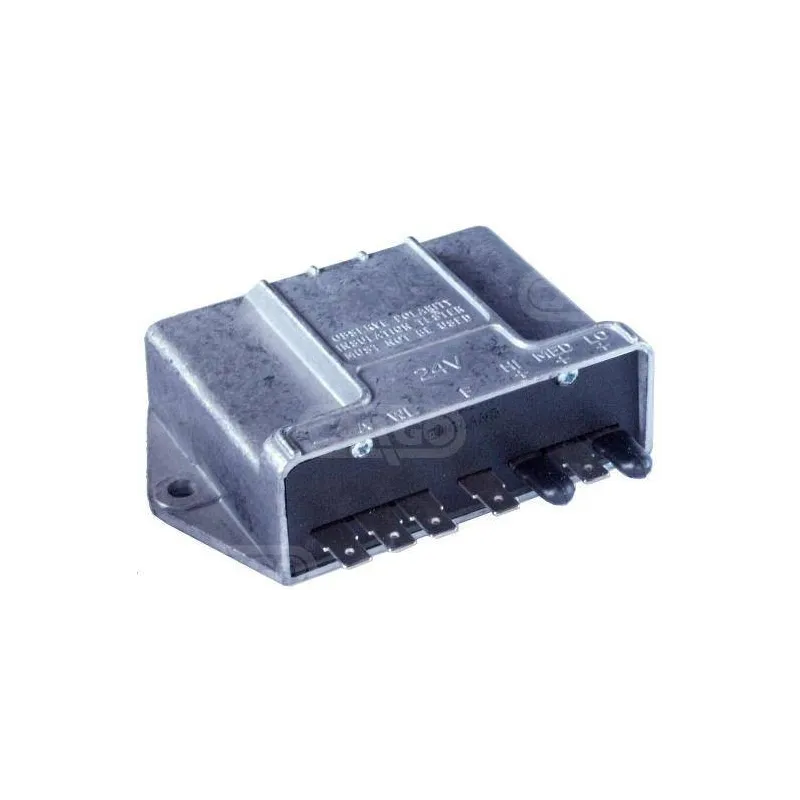

28 Volt Regulator, Cav 1697520, Krauf ARZ9520

Name: 28 Volt Regulator, Cav 1697520, Krauf ARZ9520
Brand: AutoTruck Company
SKU: 130605 - G3691
Price: 58.53 EUR
Availability: InStock

Reference 130605 - G3691

Brand AutoTruck Company

28 Volts - Compatible: Cav: 1263020 - Magneti marelli: 63320112,

€58.53

VAT included

€48.77 VAT excluded

LIVRAISON 24/48H

Quantity

IN STOCK - IMMEDIATE DELIVERY

Order now and receive it...

30/03/2026 with TRAITEMENT PRIORITAIRE : Express à domicile J+1 avant 13h

between 30/03/2026 and 01/04/2026 with DPD

between 31/03/2026 and 02/04/2026 with UPS - Domicile / Entreprise (Hors Corse)

between 31/03/2026 and 03/04/2026 with Livraison vers des relais Pickup en France et en Europe

between 01/04/2026 and 03/04/2026 with UPS - Pick up Europe

between 01/04/2026 and 03/04/2026 with UPS - Relais Pick Up (Hors Corse)

Delivery policy

(edit with the Customer Reassurance module)

Security policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

FEATURES:

Electrical Specifications

Voltage    28
Voltage Setting    27.5

Physical Specifications

Regulator Connector    Electronics
E    Dist. holes mm    103.75

More information

For    AC5, AC7

REPLACES THE FOLLOWING PART NUMBERS:

Cav: 1697520, 1697A520, 1697D520, 1861600, 1861650, 1861658, 1861668.
Krauf: ARZ9520.
Transpo: CE520, CE520-1.
Motorherz: CE520CN.
Mario Ghibaudi: RTR3502.

COMPATIBLE WITH THE FOLLOWING ALTERNATORS:

Cav: 1263020, 1263030, 1263040, 1263190, 1263200, 1263210, 1263260, 1263297, 1263298, 1263307, 1263308, 1263A020, 1263A030, 1263A040, 1263A190, 1263A200, 1263A210, 1263A260, 1263A297, 1263A298, 1263A299, 1263A301, 1263A302, 1263A303, 1263A304, 1263A306, 1263A309, 1263A310, 1263B020, 1263B030, 1263B040, 1263B190, 63B200, 1263B210, 1263B260, 1263B297, 1263B300, 1263B301, 1263B302, 1263B303, 1263B304, 1263B306, 1263B307, 1263B308, 1263B309, 1263B310, 1263B311, 1263B312, 1263B313, 1263B315, 1263B317, 1263B319, 1263B321, 1263B335, 1263B337, 1263B339, 63B341, 1263B349, 1263B353, 1263B355, 1263B357, 1263B359, 1263B361, 1263B363, 1263B365, 1263C385, 1269820, 1269830, 1269840M, 1269850, 1269860M, 1269870, 1269880M, 1269890, 1269900M, 1272202, 1272212, 1272222, 1272249, 1272402, 1272711, 272801, 1272814, 1272831, 1272840, 1272850, 1272851, 1272860, 1272861, 1273002, 1273003, 1273005, 1273008, 1273009, 1273011, 1273012, 1273013, 1273016, 1273022, 1273023, 1273031, 1273043, 1273050, 1273061, 1273071, 1273085, 1273090, 00, 129840M, 1320G621, 1320G830, 1320H830, 1403010, AC524-19, AC524-2, AC524-20, AC524-21, AC524-26, AC524-3, AC524-34, AC524-35, AC524-4, AC5A24-19, AC5A24-2, AC5A24-20, AC5A24-21, AC5A24-26, AC5A24-3, AC5A24-34, AC5A24-35, AC5A24-35B, AC5A24-4, AC5A24-40, AC5A24-41, AC5A24-42, , AC5A24-45, AC5A24-46, AC5A24-47, AC5A24-48, AC5A24-49, AC5B24-19, AC5B24-2, AC5B24-20, AC5B24-21, AC5B24-26, AC5B24-3, AC5B24-34, AC5B24-35, AC5B24-4, AC5B24-40, AC5B24-41, AC5B24-42, AC5B24-43, AC5B24-45, AC5B24-46, AC5B24-47, AC5B24-48, AC5B24-49, AC5B24-50, AC5B24-51, AC5B24-52, 4, AC5B24-56, AC5B24-57, AC5B24-58, AC5B24-65, AC5B24-66, AC5B24-67, AC5B24-68, AC5B24-72M, AC5B24-74, AC5B24-75, AC5B24-76, AC5B24-77, AC5B24-78, AC5B24-79, AC5B24-82M, AC5C24-98M, AC5S-24, AC7B24-12C1, AC7B24-13C2, AC7B24-14C2,AC7B24-16C2, AC7B24-17C2, AC7B24-18C1, AC7B24-18C2, AC7B24-19C1, AC7B24-19C2, AC7B24-206C2, AC7B24-206C2F, AC7B24-206C2M, AC7B24-206C5, 06C5F, AC7B24-209C2, AC7B24- 209C2F, AC7B24-209C2M, AC7B24-212, AC7B24-212C2M, AC7B24-212F, AC7B24-215M, AC7B24-216C2, AC7B24-218C2, AC7B24-223C1F, AC7B24-225C1F, AC7B24-228C1F, AC7B24-229M, AC7B24-231, AC7B24-6C1, AC7B24-6C1M, AC7B24-6C2, AC7B24-6C5P, AC7B24-9C2, CA45D129, F1253, CA45F129, CA45G1253, CA45G129, S115124M, S115A241, S115HD242.
Magneti marelli: 63320112, 63321061, 63321197.

Product Details

Reference 130605 - G3691

Condition New

Data sheet

Tension: 28 Volts

Specific References

UPC: 400000042435
EAN13: 4000000042372
