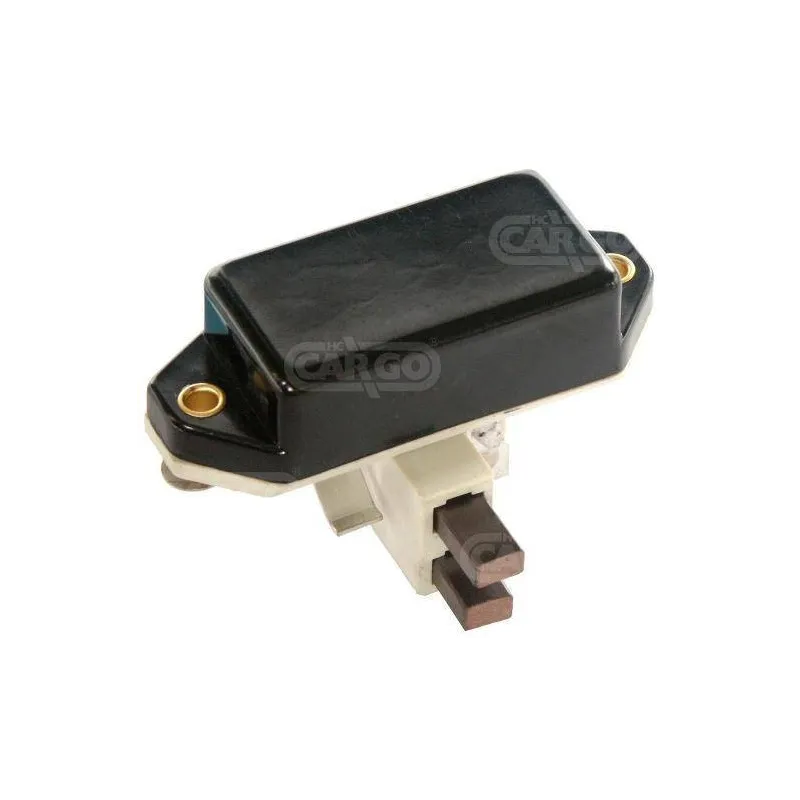

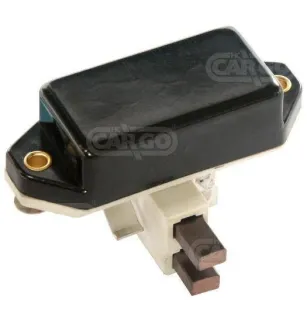

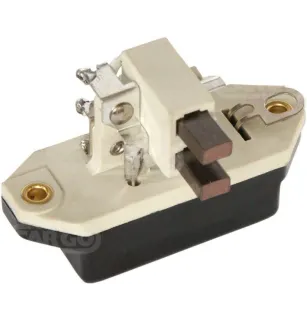

28 Volts - Magneti marelli: 64800007 - Man: 81256016013 - Case: C941530
Delivery policy
(edit with the Customer Reassurance module)
Security policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
FEATURES:
Electrical specifications
Voltage 28
Voltage adjustment 28.3
Physical specifications
Regulator connector Electronics

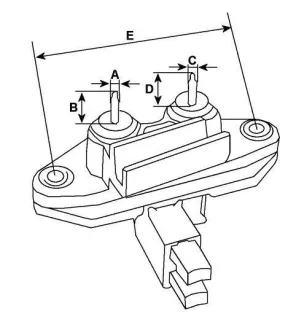

E Hole distance mm 66.00
More information
Remarks Collector ring D.E. 32.00 mm.
REPLACES THE FOLLOWING PART NUMBERS:
Khd: 01306480, 1306480, 4701484, 8122154.
Bosch: 0192052010, 0192053001, 0192053002, 0192053004, 0192053007, 0192053008, 0192053027, 1197311317.
Iveco: 04701484, 1306480, 9988935.
Deutz: 04701484, 1306480, 4701484, 8122154.
Ika: 1.6055.1.
Remco: 1011141.
Iskra: 11-125-004, 11-125-055, 11125004, 11125055, AER1403, AER1507.
Lucas: 21221125, 21221348, UCB402.
Volvo: 244344.
International harv.: 3079147R91, 3097147R91.
Waiglobal: 35-9101.
Fiat: 4701484, 79022473, 9988935.
Valeo: 505-059, 505059, 9RC8090, NB412.
Motorola: 505-059, 9RC8090.
Steyr: 61500090706.
Magneti marelli: 64800007, 940038006.
Daf: 694072.
Man: 81256016013, 81256016017.
Krauf: ARB0376.
Box: C941530.
Transpo: IB376, IB376-1.
Mario Ghibaudi: RTR3047, RTR4042.
Mobiletron: VR-B197.

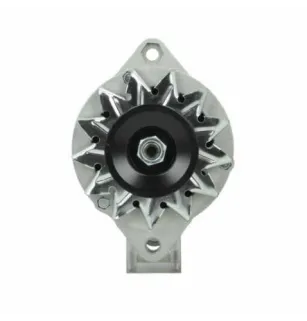

COMPATIBLE WITH THE FOLLOWING ALTERNATORS:
Bosch: 0120339537, 0120339538, 0120339557, 0120399558, 0120469509, 0120489410, 0120489412, 0120489414, 0120489481, 0120489584, 0120489612, 0120489638, 0120489639, 0120489640, 0120489661, 0120489681, 0120489682, 0120489792, 0120489793, 0120489794, 0120489795, 0120489796, 9120144100, 9120144101, 9120144102, 9120144103, 9120144104, 9120144105, 9120144106, 9120144107, 9120144108, 9120144109, 9120144110, 9120334134, 9120334140, B120321060, B120321061, B120421143, B120421146, B120421223, B120421498, B120421829.
Delco: 1107587, 1113256.
Ford: 1113101, 1113174, 89FF10300CC, 89FF10300CD, 89FF10300CE, 89FX10300CD, R89FF10300CD, R89FF10300CE, R89FX10300CD.
Lucas: 24271, 54022305, 54022307, 54022400, 54022450, 54022559, 54022597, 54022701, 54055205.
Data sheet
Specific References
Reference: 506.001.035.090
Brand: Plus Line
28 Volts - Magneti marelli: 64800007 - Man: 81256016013 - Case: C941530
