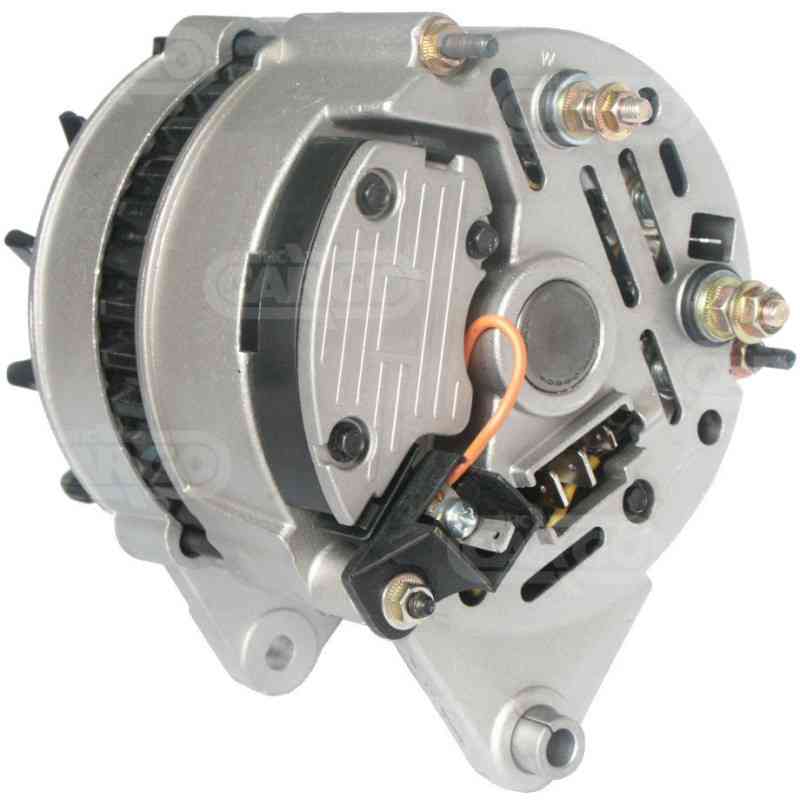

Altering 14v 45amp Lucas 24246, 24246a, 24246b, 24246f, 24246j

altering 14v 45amp Lucas 24246, 24246a, 24246b, 24246f, 24246j

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     45
terminal W

physical information

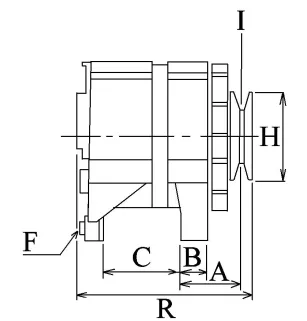

a dist. Pulley 36.70
B Arm width 11.00
C Dist. Between support 83.00

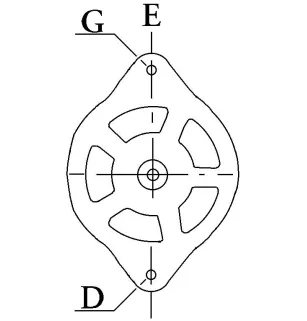

D Diameter of the hole 8.70
e Angle paste tensioner 50
g Diameter Trou de la Patte M8
H POULLIA DIA.     79.65
I GRAINURES OF THE PULL 1

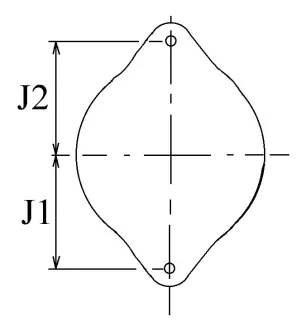

J Radius 85.00
J Radius 2 86.50

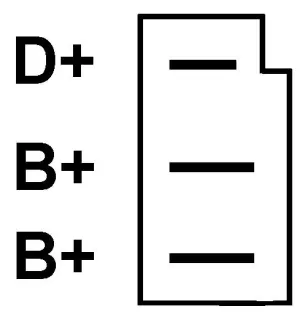

K B + M6
k Position B + in min.     12
L D+ Plug size
n Rotation CW
o STAGE NO PL22
Q Type taken W M5
R Total length mm 165.00

Information Catalogs
Pulley Pulley
Type REGULATOR IR
Vacuum pump no
Info Product BN
for New Holland, Ford

replaces the following references: } 24246 LUCAS
24246A LUCAS
24246B LUCAS
24246F LUCAS
24246J LUCAS
24256 LUCAS
24256A LUCAS
24256B Lucas} 24256c Lucas
24327a Lucas
54022292 Lucas
54022310 Lucas
54022481 Lucas
63324327 Magneti Marelli
633256
ca725ir hc-parts

Compatible with the following vehicles:
cummins, industry
ford, agricultural machines
Massey Ferguson, Agricultural machines
New Holland,
