Alternator 28V 15Amp Nikko 0-33000-2860, 0-33000-3070, 0-33000-5280, 0-33000-5860

110563

Alternator 28V 15Amp Nikko 0-33000-2860, 0-33000-3070, 0- 33000-5280, 0-33000-5860

€141.36
VAT included
€117.80 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

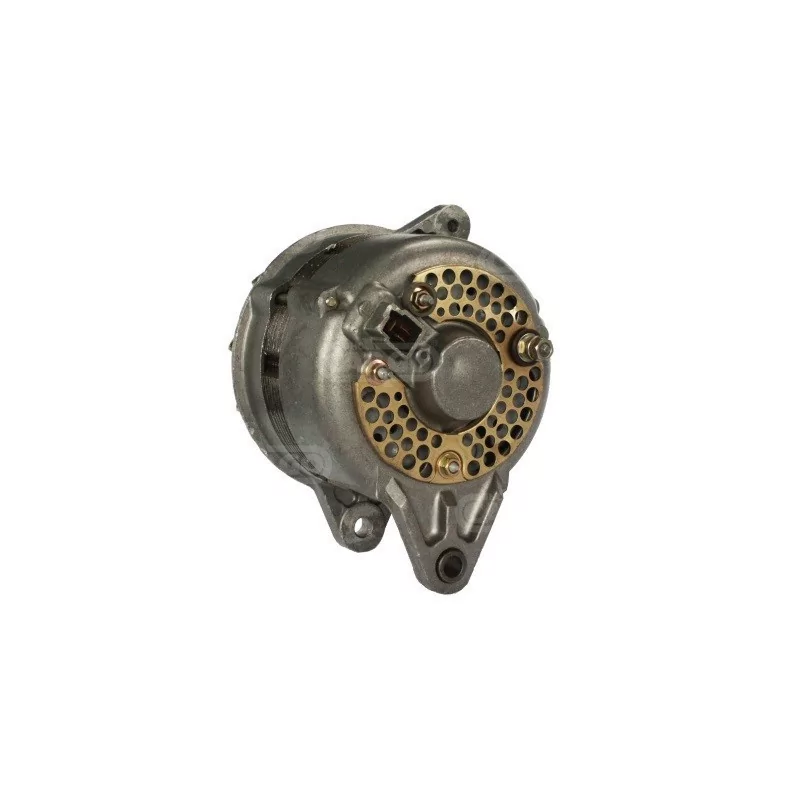

Alternator 28V 15Amp Nikko 0-33000-2860, 0-33000-3070, 0-33000-5280, 0-33000-5860

  • BRAND: BOSCH
  • New Alternator
  • warranty: 2 years
  • Without Deposit
  • Origin Quality


CHARACTERISTICS:

Electrical Information
Voltage 28
Amp. 15

Physical Information

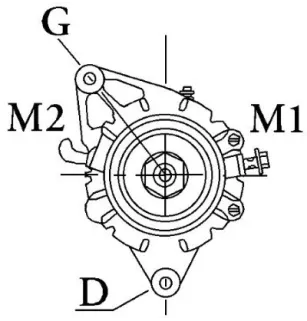

At Dist. pulley 48.15
B Width of arms 12.25
C Distance between supports 76.00
D Hole diameter 10.25
E Angle of tensioner paste 50
G Diameter of the hole of the tab M8
H Pulley dia. 84.70
I Pulley grooves 1

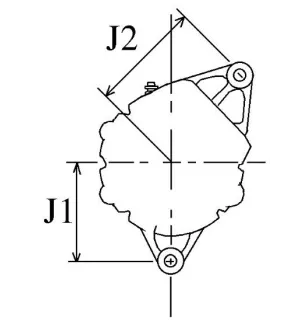

J Radius 87.00
J Radius 2 87.45
K B + M6
K Position B+ in min . 55
N Rotation CW

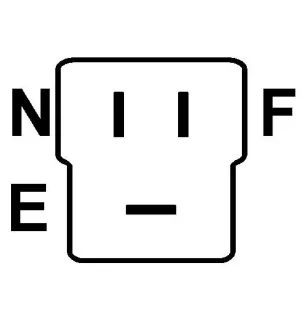

O Socket no PL15
R Total length mm 161.00

Information Catalogues
Pulley Pulley
Relay Without
Product Info Bn
For Toyota
Remarks Regulator: HC-CARGO 132628.

REPLACES THE FOLLOWING PART NUMBERS :
021000-4271 Denso
021000-4510 Denso
27020-10940 Toyota
27020-78601-71 Toyota
27020-96601 Toyota

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Toyota, Light Vehicle EU

Product Details
110563
New

Data sheet

Tension
28 Volts
Ampérage
15A

Specific References

UPC
400000042077
EAN13
4000000042013
