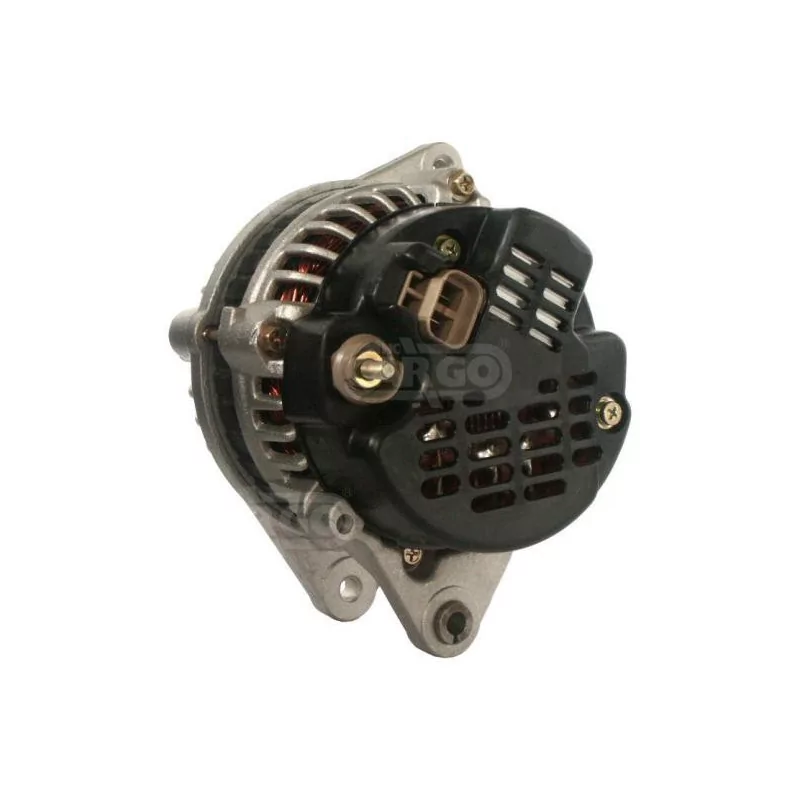

Alternator 14V 90Amp Kia 37300-22200, 37300-222000, Valeo AB190058, HAB190140, Halla HAB190140

Alternator 14V 90Amp Kia 37300-22200, 37300-222000, Valeo AB190058, Halla HAB190140, Valeo HAB190140

• BRAND: BOSCH
• New Alternator
• Warranty: 2 years
• Without Deposit
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 90

Physical Information
A Pulley Dist. 35.00
B Arm Width 13.25
C Pulley Dist. between bracket 55.45
D Hole diameter 8.50
E Tensioner paste angle 55
G Tab hole diameter M8
H Pulley dia. 60.00
I Pulley grooves 4
J Radius 89.50
J Radius 2 89.50
K B + M6
K Position B+ in min. 47
L D+ Plug Size
N Rotation CW
O Plug No PL07
R Total Length mm 160.00

Catalog Information
Pulley Serpentine Pulley
Regulator Type Ir
Vacuum Pump No
Product Info Bn
For Hyundai

REPLACES THE FOLLOWING PART NUMBERS:
37300-22200 Kia
37300-222000 Kia
AB190058 Valeo
HAB190140 Halla
HAB190140 Valeo
JA994IR HC-PARTS
TA000A14501 Valeo

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Hyundai, Light Vehicle EU
Hyundai, Light Vehicle US
