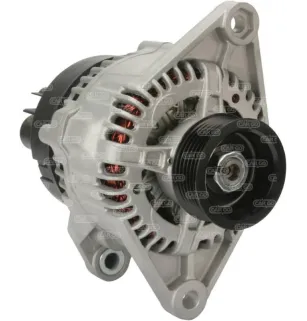

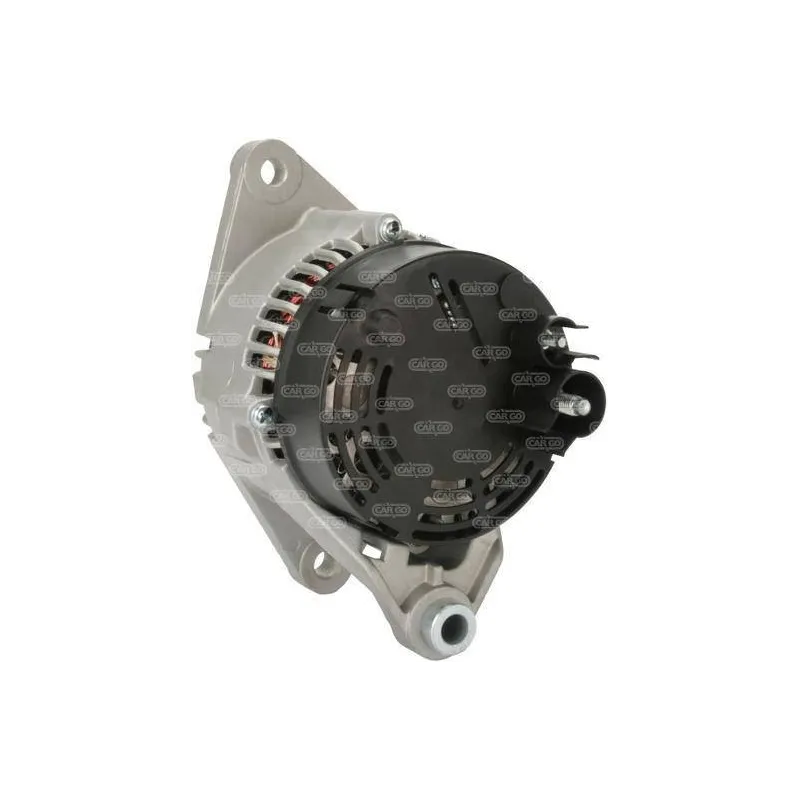

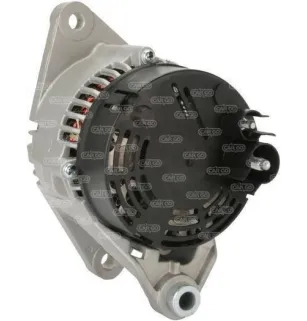

Alternator 14V 85Amp Fiat 46420966, 46425517, 46425518, 46442777, 46532168

Alternator 14V 85Amp Fiat 46420966, 46425517, 46425518, 46442777, 46532168

• BRAND: BOSCH
• New Alternator
• Warranty: 2 years
• Without Deposit
• Original Quality

CHARACTERISTICS:
Electrical Information
    Voltage     14
    Amp.     85

Physical Information
A     Pulley Dist.     41.00
B     Arm Width     17.00
C     Pulley Dist. between bracket 82.00
D Hole diameter 12.00
E Tensioner bracket angle 4
G Tab hole diameter 11.00
H Pulley dia. 62.00
I Pulley grooves 6
J Radius 90.00
J Radius 2 90.00
K B + M8 K B+ position in min. 14
L     D+ Size     M5
N     Rotation     CW
R     Total length mm     200.50

Information Catalogues
    Pulley     Serpentine pulley
    Regulator type     Ir
    Vacuum pump     No
    Product info     Bn
    For     Fiat, Citroen

REPLACES THE FOLLOWING PART NUMBERS:
46420966    Fiat
46425517    Fiat
46425518    Fiat
46442777    Fiat
46532168    Fiat
46774413     Fiat
63321227     Magneti Marelli
63321237     Magneti Marelli
63321331     Magneti Marelli
63321333 Magneti Marelli 63321792 63321792
COMPATIBLE WITH THE FOLLOWING VEHICLES:
Citroen, Light Vehicle EU
Fiat, Light Vehicle EU
Peugeot, Light Vehicle EU
