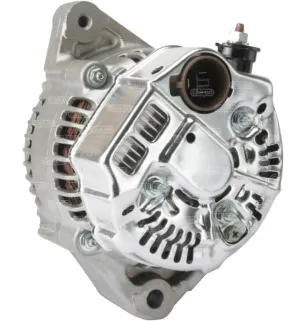

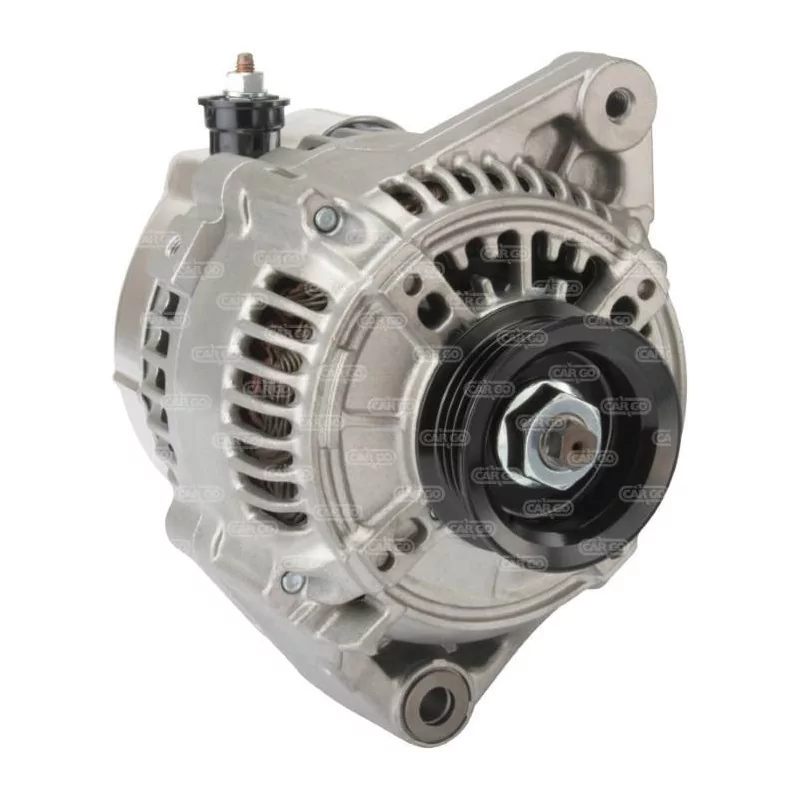

Alternator 14V 80Amp Denso 100211-7820, 100211-8060, 100211-8380, 100211-8381, 100211-8440
  • Alternator 14V 80Amp Denso 100211-7820, 100211-8060, 100211-8380, 100211-8381, 100211-8440
  • Alternator 14V 80Amp Denso 100211-7820, 100211-8060, 100211-8380, 100211-8381, 100211-8440
  • Alternator 14V 80Amp Denso 100211-7820, 100211-8060, 100211-8380, 100211-8381, 100211-8440
  • Alternator 14V 80Amp Denso 100211-7820, 100211-8060, 100211-8380, 100211-8381, 100211-8440

Alternator 14V 80Amp Denso 100211-7820, 100211-8060, 100211-8380, 100211-8381, 100211-8440

111538

Alternator 14V 80Amp Denso 100211-7820, 100211-8060, 100211-8380, 100211-8381, 100211-8440

€226.88
VAT included
€189.06 VAT excluded
LIVRAISON 24/48H
Quantity
EN STOCK - LIVRAISON 24/48H

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Alternator 14V 80Amp Denso 100211-7820, 100211-8060, 100211-8380, 100211-8381, 100211-8440

  • BRAND: BOSCH
  • New Alternator
  • Warranty: 2 years
  • Without Deposit
  • Original Quality


CHARACTERISTICS:
Electrical Information
    Voltage     14
    Amp.      80

Physical Information
A     Dist. pulley     90.50
B     Arm width     58.00
D     Hole diameter     10.30
E     Tensioner paste angle     5
G     Lug hole diameter     M8
H     Pulley dia. 59.00
I     Pulley grooves     4
J     Radius     79.00
J     Radius 2     83.80
K     B +     M6
K     Position B+ in min.     5
L     D+ Size     Plug
N     Rotation     CW
O     Plug no     PL12
Q     Plug type W     Plug
R     Total length mm     161.00

Information Catalogues
    Pulley     Serpentine pulley
    Regulator type     Ir
    Vacuum pump     No
    Product info     Reman
    For     Toyota

REPLACES THE FOLLOWING PART NUMBERS:
100211-7820     Denso
100211-8060     Denso
100211-8380     Denso
100211-8381     Denso
100211-8440     Denso
27060-74160     Toyota
27060-74170     Toyota
27060-74250     Toyota
27060-74320     Toyota
JA882IR     HC-PARTS

FITS THE FOLLOWING VEHICLES:
Toyota, Light Vehicle EU

Product Details
111538
New

Data sheet

Tension
14 Volts
Ampérage
80A

Specific References

UPC
400000051932
EAN13
4000000051879
