Alternator 14V 70Amp Volkswagen 028903023R, 028903025G, 028903025GX, 030903023A, 030903023B

Alternator 14V 70Amp Volkswagen 028903023R, 028903025G, 028903025GX, 030903023A, 030903023B

• BRAND: BOSCH
• New Alternator
• Warranty: 2 years
• No Deposit
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 70
Terminal W

Physical Information

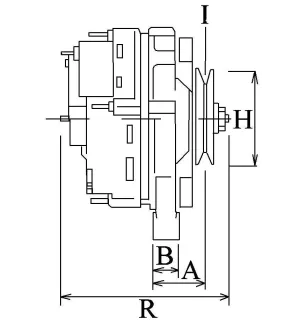

A Pulley Dist. 39.50
B Arm Width 14.60
C Dist. between bracket 60.00

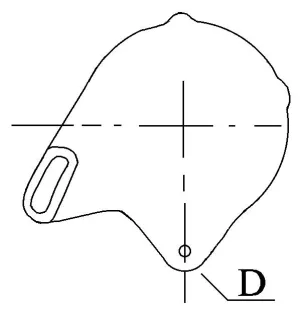

D Hole diameter 8.30

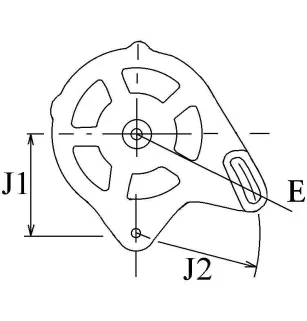

E Tensioner paste angle 14
G Tab hole diameter 9.60/37.70
H Pulley dia. 50.50
I Pulley grooves 6
J Radius 90.00
J Radius 2 111.00
K B + M8
K Position B+ in min. 2
L D+ Plug size
N Rotation CW
O Plug not PL23

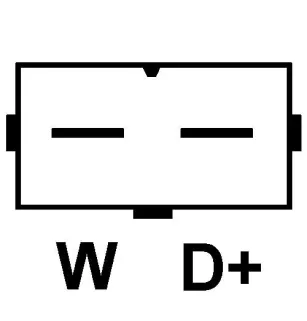

Q Plug type W Plug
R Total length mm 190.50

Information Catalogues
Pulley Serpentine pulley
Regulator type Ir
Product info Bn
For Seat, Skoda, VW

REPLACES THE FOLLOWING PART NUMBERS:
028903023R Volkswagen
028903025G Volkswagen
028903025GX Volkswagen
030903023A Volkswagen
030903023B Volkswagen
030903023BX Volkswagen
030903023D Volkswagen
030903023DX Volkswagen
030903023E Volkswagen
030903023EX Volkswagen
030903023G Volkswagen
030903023AA Volkswagen
11.201.889 Iskra
1516619R DAF
1516620R DAF
2541410 Valeo
2541415 Valeo
2541415G Valeo
2541415H Valeo
2541821 Valeo
2541821A Valeo
9462.3701 Katek
A11VI21 Valeo
A11VI22 Valeo
A11VI66 Valeo
CA733IR HC-PARTS
AAK5169 Iskra

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Seat, Light Vehicle EU
Skoda, Light Vehicle EU
VW, Light Vehicle EU
VW, Light Vehicle US
