Alternator 14V 70Amp, Denso 100211-3350, 100211-3351, 100211-3352, 100211-7000, 100211-7001, 100211-7050, 100211-7051

Alternator 14V 70Amp, Denso 100211-3350, 100211-3351, 100211-3352, 100211-7000, 100211-7001, 100211-7050, 100211-7051

• BRAND: BOSCH
• New Alternator
• warranty: 2 years
• Without Deposit
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 70

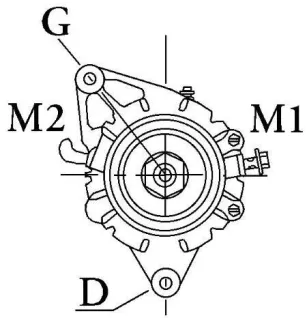

Physical Information
At Dist. pulley 87.50
B Arm width 58.00
D Hole diameter 10.35
E Tensioner paste angle 55
G Tab hole diameter M8
H Pulley dia. 57.50
I Pulley grooves 5

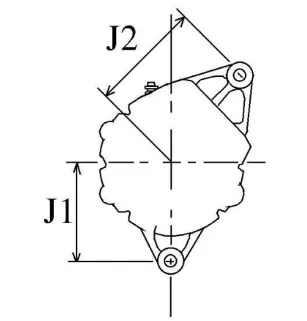

J Radius 79.60
J Radius 2 82.70
K B + M6
K Position B+ in min. 50

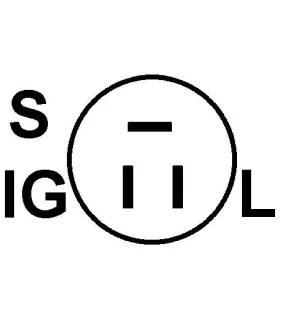

L D+ Size Socket
N Rotation CW
O Socket not PL12
R Total length mm 160.00

Information Catalogs
Pulley Serpentine pulley
Regulator type Ir
Vacuum pump No
Product info Bn
For Toyota, GEO

REPLACES THE FOLLOWING PART NUMBERS:
100211-3350 Denso
100211-3351 Denso
100211-3352 Denso
100211-7000 Denso
100211-7001 Denso
100211-7050 Denso
1 Denso 0012} 100211-7052 Denso
100211-8030 Denso
100211-8031 Denso
10211-7000 Denso
10463267 Remy (delco)
10479805 Remy (delco)
27060-02020 Toyota
27060-16100 Toyota
27060-16122 Toyota
27060-16140 Toyota
27060-16160 Toyota
27060- 16170 Toyota
27060-16230 Toyota
27060-16260 Toyota
321-523 Remy (delco)
JA552IR HC-PARTS

COMPATIBLE WITH VEHICLES NEXT:
GEO, US Light Vehicle
Toyota, EU Light Vehicle
Toyota, US Light Vehicle
