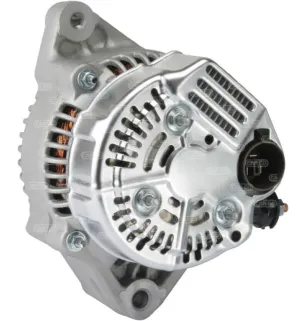

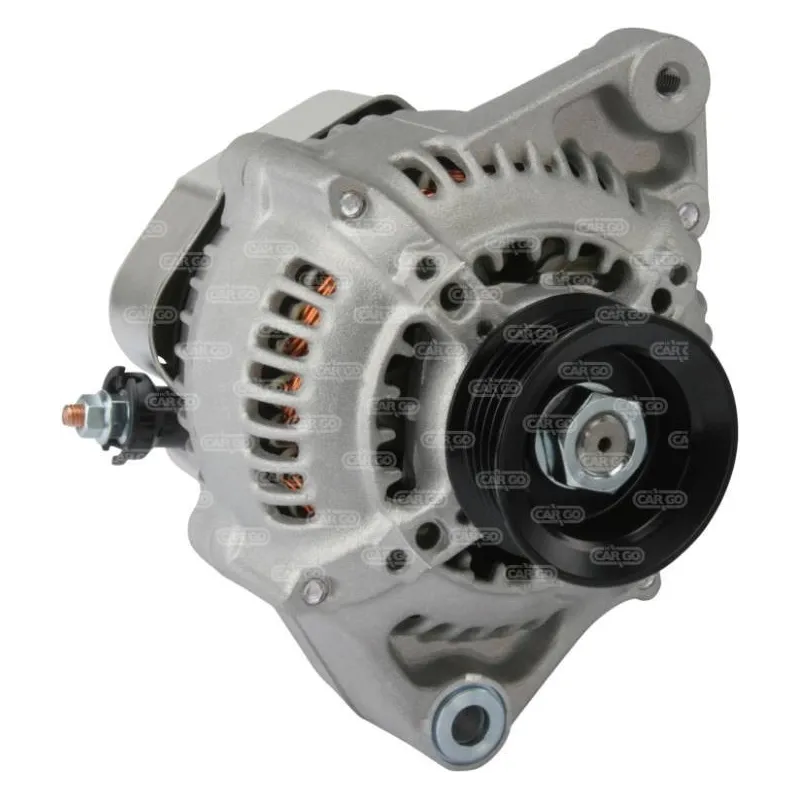

Alternator 14V 70Amp Denso 100211-1000, 100211-1001, 100211-1008, 100211-1010, 100211-1011
  • Alternator 14V 70Amp Denso 100211-1000, 100211-1001, 100211-1008, 100211-1010, 100211-1011
  • Alternator 14V 70Amp Denso 100211-1000, 100211-1001, 100211-1008, 100211-1010, 100211-1011
  • Alternator 14V 70Amp Denso 100211-1000, 100211-1001, 100211-1008, 100211-1010, 100211-1011
  • Alternator 14V 70Amp Denso 100211-1000, 100211-1001, 100211-1008, 100211-1010, 100211-1011

Alternator 14V 70Amp Denso 100211-1000, 100211-1001, 100211-1008, 100211-1010, 100211-1011

111705

Alternator 14V 70Amp Denso 100211-1000, 100211-1001, 100211-1008, 100211-1010, 100211-1011

€166.22
VAT included
€138.51 VAT excluded
LIVRAISON 24/48H
Quantity
EN STOCK - LIVRAISON 24/48H

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Alternator 14V 70Amp Denso 100211-1000, 100211-1001, 100211-1008, 100211-1010, 100211-1011

  • BRAND: BOSCH
  • New Alternator
  • Warranty: 2 years
  • Without Deposit
  • Original Quality


CHARACTERISTICS:
Electrical Information
    Voltage     14
    Amp.      70

Physical Information
A     Dist. pulley     90.00
B     Arm width     58.00
D     Hole diameter     10.30
E     Tensioner paste angle     5
G     Lug hole diameter     M8
H     Pulley dia. 55.00
I     Pulley grooves     5
J     Radius     80.00
J     Radius 2     83.50
K     B +     M6
K     Position B+ in min.     20
L     D+ Size     Plug
N     Rotation     CW
O     Plug no     PL12
R     Total length mm     158.50

Information Catalogs
    Pulley     Serpentine pulley
    Regulator type     Ir
    Vacuum pump     No
    Product info     Bn
    For     Toyota

REPLACES PART NUMBERS FOLLOWING:
100211-1000     Denso
100211-1001     Denso
100211-1008     Denso
100211-1010   Denso 100211-1011 Denso 10010     Denso 100211-2021 Denso 100211-2022 Denso 100211-2021 Denso 100211-2022 Denso 100211-2021 Denso
100211-3040     Denso
100211-3041     Denso
100211-3060     Denso
100211-3061     Denso
100211-3100     Denso
100211-3101     Denso
100211-3104     Denso
100211-3150     Denso
100211-3151     Denso
100211-7040     Denso
100211-7041     Denso
100211-7160     Denso
100211-8050     Denso
100211-8051     Denso
100211-8090     Denso
100211-8120     Denso
100211-8121     Denso
100211-8130     Denso
100211-9780     Denso
100211-9800     Denso
100211-9801    Denso
27060-16041    Toyota
27060-16060    Toyota
27060-16141    Toyota
27060-16280    Toyota
27060-42030    Toyota
27060-42060    Toyota
27060-63020     Toyota
27060-63021     Toyota
27060-63080     Toyota
27060-63081     Toyota
27060-63082     Toyota
/>27060-63101    Toyota
27060-70050    Toyota
27060-74010    Toyota
27060-74020    Toyota
27060-74070     Toyota
27060-74100     Toyota
27060-74270     Toyota
JA161IR     HC-PARTS

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Toyota, Light Vehicle EU
Toyota, Light Vehicle US
Toyota, Light Vehicle Asia and Oceania



Product Details
111705
New

Data sheet

Tension
14 Volts
Ampérage
70A

Specific References

UPC
400000052229
EAN13
4000000052166
