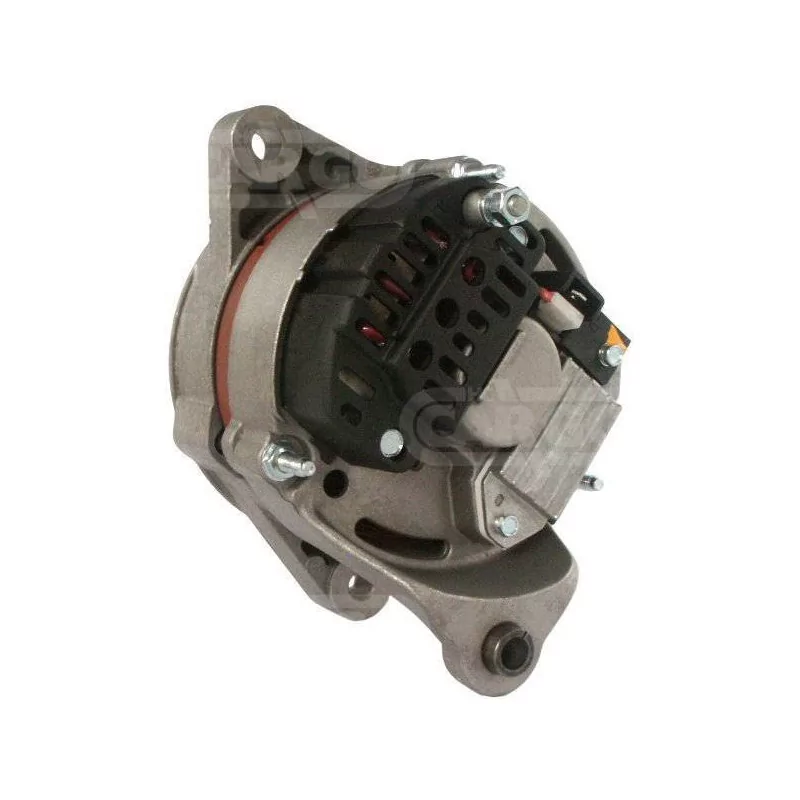

Alternator 14V 65Amp Bosch 0120488140, 0120488207, 0120488222, 0120488223, 0120488235

Alternator 14V 65Amp Bosch 0120488140, 0120488207, 0120488222, 0120488223, 0120488235

• BRAND: BOSCH
• New Alternator
• Warranty: 2 years
• Without Deposit
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 65

Physical Information
A Pulley Dist. 52.00
B Arm Width 23.00
C Pulley Dist. between bracket 73.00
D Hole diameter 10.30
E Tensioner paste angle 5
G Tab hole diameter 11.00
H Pulley dia. 68.25
I Pulley grooves 1

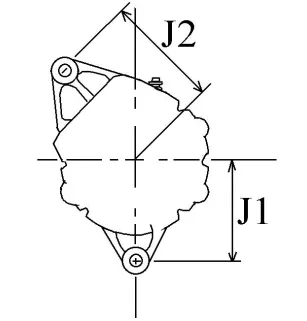

J Radius 79.50
J Radius 2 87.50
K B + M6
K Position B+ in min. 58
L D+ Size 6.30
N Rotation CW
R Total length mm 165.50

Information Catalogues
Pulley Pulley
Regulator type Ir
Vacuum pump No
Product info Bn
For Fiat, Lancia, Zastava, Autobianchi

REPLACES THE FOLLOWING PART NUMBERS:
0120488140 Bosch
0120488207 Bosch
0120488222 Bosch
0120488223 Bosch
0120488235 Bosch
0120488275 Bosch
0120489128 Bosch
0120489129 Bosch
0120489263 Bosch
0120489348 Bosch
0120489400 Bosch
0120489942 Bosch
0120489943 Bosch
063321068020 Mako
063321070000 Mako
11,201,205 Iskra
11.201.406 Iskra
11.201.582 Iskra
283020.1 Elmot
4470266 Fiat
46231678 Fiat
46231682 Fiat
46231688 Fiat
46231689 Fiat
46231760 Fiat
54022420 lucas
5955503 Fiat
5955504 Fiat
63307604 Magneti Marelli
63307624 Magneti Marelli
63307634 Magneti Marelli
63320016 Magneti Marelli
63320035 Magneti Marelli
63320055 Magneti Marelli
63321007 Magneti Marelli
63321023 Magneti Marelli
63321068 Magneti Marelli
63321070 Magneti Marelli
63321510 Magneti Marelli
7547791 Fiat
7565559 Fiat
7580209 Fiat
7588791 Fiat
7596859 Fiat
7610362 Fiat
7651074 Fiat
7663140 Fiat
7665826 Fiat
7702247 Fiat
7715319 Fiat
77401410 Fiat
77523410 Fiat
77525410 Fiat
7810362 Fiat
9120080224 Bosch
943321023 Magneti Marelli
97054425 Fiat
A125-65B Elmot
A13E68 Valeo
CA254IR HC-PARTS
AAK1173 Iskra
AAK3530 Iskra
AAK4527 Iskra

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Autobianchi, Light Vehicle EU
Fiat, Light Vehicle EU
Fiat, Light Vehicle US
Fiat, Light Vehicle Asia and Oceania
Lancia, Light Vehicle EU
Zastava, Light Vehicle EU
