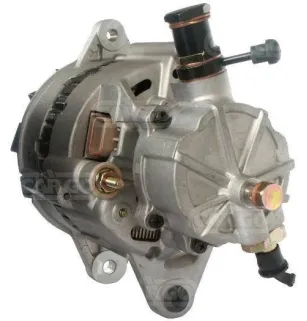

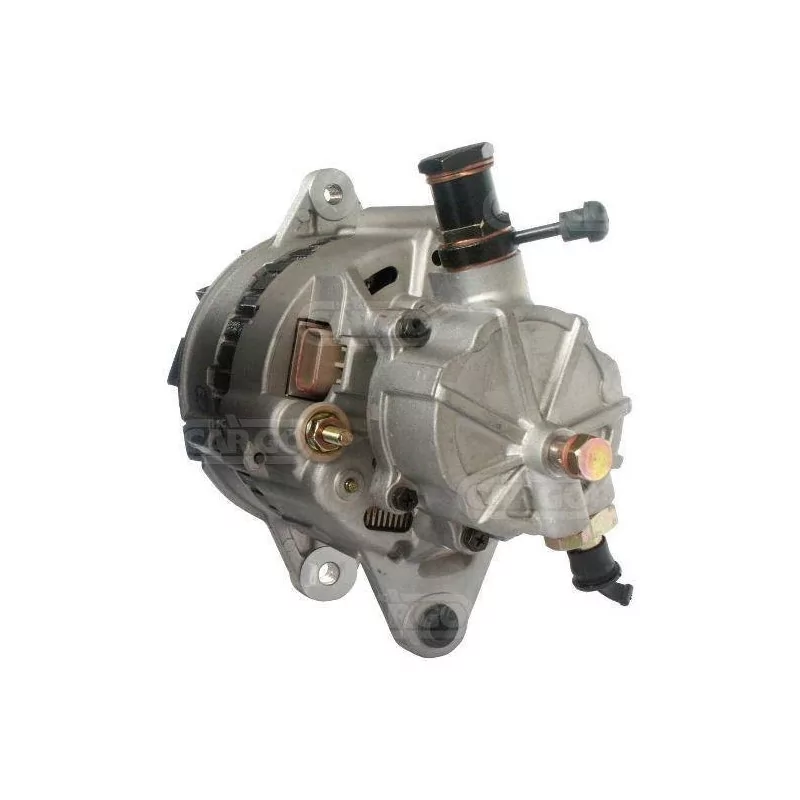

Alternator 14V 60Amp Nissan 23100-02N13, 23100-02N17, 23100-02N21, 23100-43G05, 23100-43G07

Alternator 14V 60Amp Nissan 23100-02N13, 23100-02N17, 23100-02N21, 23100-43G05, 23100-43G07

• BRAND: BOSCH
• New Alternator
• Warranty: 2 years
• No Deposit
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 60

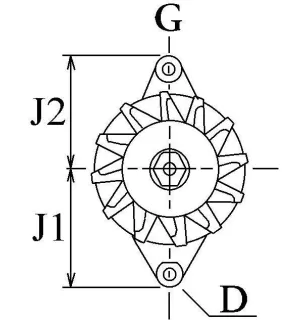

Physical Information
A Pulley Dist. 42.00
B Arm Width 14.00
C Pulley Dist. between bracket 81.00
D Hole diameter 10.30
E Tensioner paste angle 60
G Tab hole diameter M8
H Pulley dia. 84.00
I Pulley grooves 2
J Radius 91.50
J Radius 2 86.00
K B + M6
K Position B+ in min. 45
L D+ Plug Size
N Rotation CW
O Plug No PL07
R Total Length mm 249.00

Catalog Information
Pulley Double Pulley
Regulator Type Ir
Vacuum Pump Yes
Product Info Bn
For Nissan

REPLACES THE FOLLOWING PART NUMBERS:
23100-02N13 Nissan
23100-02N17 Nissan
23100-02N21 Nissan
23100-43G05 Nissan
23100-43G07 Nissan
23100-43G09 Nissan
JA780IR HC-PARTS
LR160-426 Hitachi
LR160-426E Hitachi
LR160-426S Hitachi
LR160-426T Hitachi
LR160-427 Hitachi
LR160-427C Hitachi
LR160-427S Hitachi
LR160-427T Hitachi
LR160-436 Hitachi
LR160-436S Hitachi
LR160-436T Hitachi
LR160-437 Hitachi
LR160-437S Hitachi
LR160-437T Hitachi

FITS THE FOLLOWING VEHICLES:
Nissan, Light Vehicle EU
