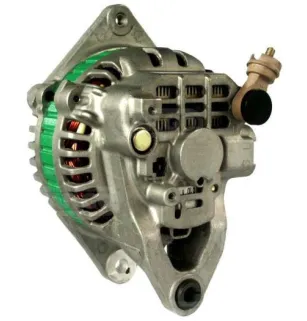

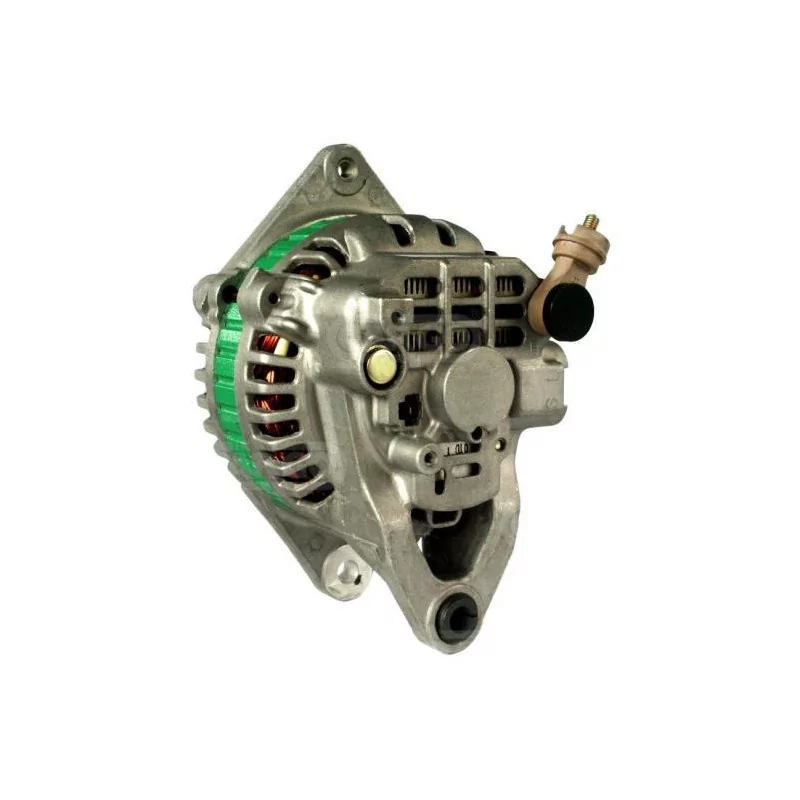

Alternator 14V 60Amp Mitsubishi A005T01577, A005T01977, A005T03677, A005T03677A, A005T03777

Alternator 14V 60Amp Mitsubishi A005T01577, A005T01977, A005T03677, A005T03677A, A005T03777

• BRAND: BOSCH
• New Alternator
• Warranty: 2 years
• Without Instructions
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 60

Physical Information

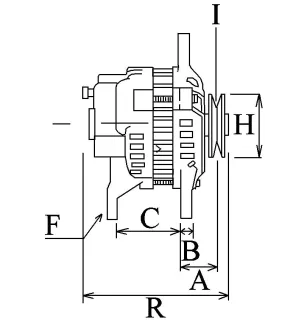

A Pulley Dist. 43.00
B Arm Width 13.00
C Pulley Dist. between bracket 66.00

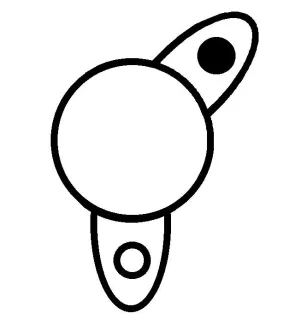

D Hole diameter M10
E Tensioner paste angle 60
G Hole diameter of the tab M8
H Pulley dia. 74.00
I Pulley grooves 1

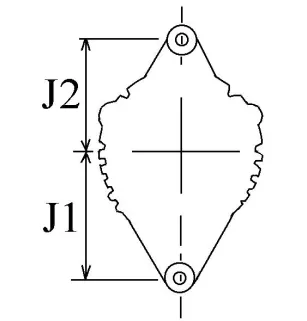

J Radius 90.00
J Radius 2 85.00
K B + M6
K Position B+ in min. 8
L D+ Plug Size
N Rotation CW

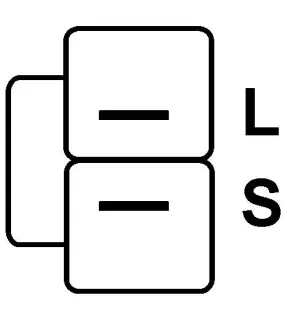

O Plug No PL07
R Total Length mm 156.00
Terminal Type L-S

Catalog Information
Pulley Pulley
Fan If
Regulator Type Ir
Vacuum Pump No
Product Info Bn
For Mazda

REPLACES THE FOLLOWING PART NUMBERS:
A005T01577 Mitsubishi
A005T01977 Mitsubishi
A005T03677 Mitsubishi
A005T03677A Mitsubishi
A005T03777 Mitsubishi
A5T01577 Mitsubishi
A5T01977 Mitsubishi
A5T03677 Mitsubishi
A5T03677A Mitsubishi
A5T03777 Mitsubishi
B61P-18-300 Mazda
B61P-18-300E Mazda
B61P-18-300F Mazda
B64J-18-300A Mazda
B64J-18-300B Mazda
HAB160102 Halla
JA805IR HC-PARTS

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Mazda, Light Vehicle EU
Mazda, Light Vehicle US
