Alternator 14V 55Amp Denso 100210-3270, 100210-3350, 100210-3360, 100210-3400, 100210-3460
Delivery policy
(edit with the Customer Reassurance module)
Security policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 55
Physical Information

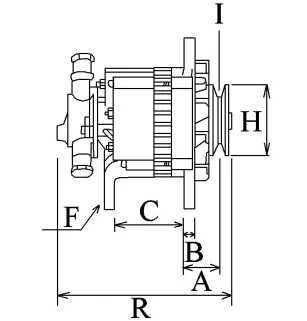

A Pulley Dist. 52.00
B Arm Width 13.50
C Pulley Dist. between bracket 97.00

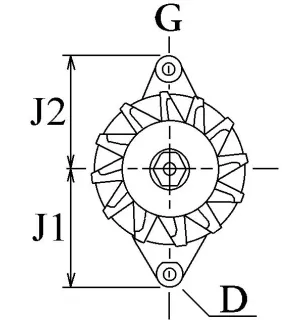

D Hole diameter 10.00

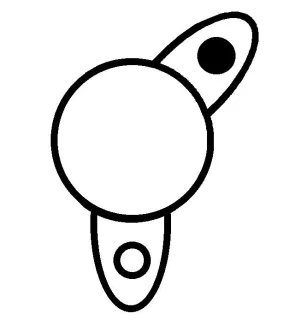

E Tensioner paste angle 2
G Tab hole diameter M8
H Pulley dia. 78.50
I Pulley grooves 2
J Radius 87.50
J Radius 2 91.00
K B + M6
K Position B+ in min. 5
N Rotation CW

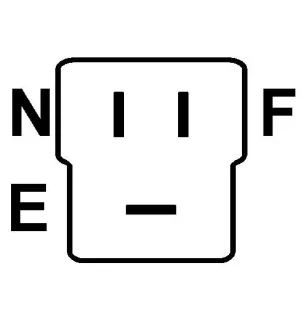

O Socket no PL15
R Total length mm 280.00
Information Catalogues
Pulley Double pulley
Relay Without
Vacuum pump Yes
Product info Bn
For VW, Toyota
Remarks Regulator: HC-CARGO 132627.
REPLACES THE FOLLOWING PART NUMBERS:
100210-3270 Denso
100210-3350 Denso
100210-3360 Denso
100210-3400 Denso
100210-3460 Denso
100210-3580 Denso
100210-3660 Denso
100210-3680 Denso
100210-3760 Denso
100210-3770 Denso
100210-3810 Denso
100210-3820 Denso
100210-3821 Denso
100210-3840 Denso
112054 HC-Cargo
121000-8230 Denso
27020-54250 Toyota
27020-54351 Toyota
27020-54352 Toyota
27020-54353 Toyota
27020-54354 Toyota
27020-54383 Toyota
27030-54190 Toyota
27030-54241 Toyota
27030-54242 Toyota
27030-54243 Toyota
27030-54244 Toyota
27030-54250 Toyota
27030-54251 Toyota
27030-54252 Toyota
27030-54253 Toyota
27030-54260 Toyota
27030-54261 Toyota
27030-54262 Toyota
27030-54263 Toyota
J2702054352 Volkswagen
J2702054700 Volkswagen
JA777 HC-PARTS
COMPATIBLE WITH THE FOLLOWING VEHICLES:
Toyota, EU Light Vehicle
VW, EU Light Vehicle
Data sheet
Specific References
Brand: TruckLed
Alternator 14V 55Amp Denso 100210-3270, 100210-3350, 100210-3360, 100210-3400, 100210-3460
