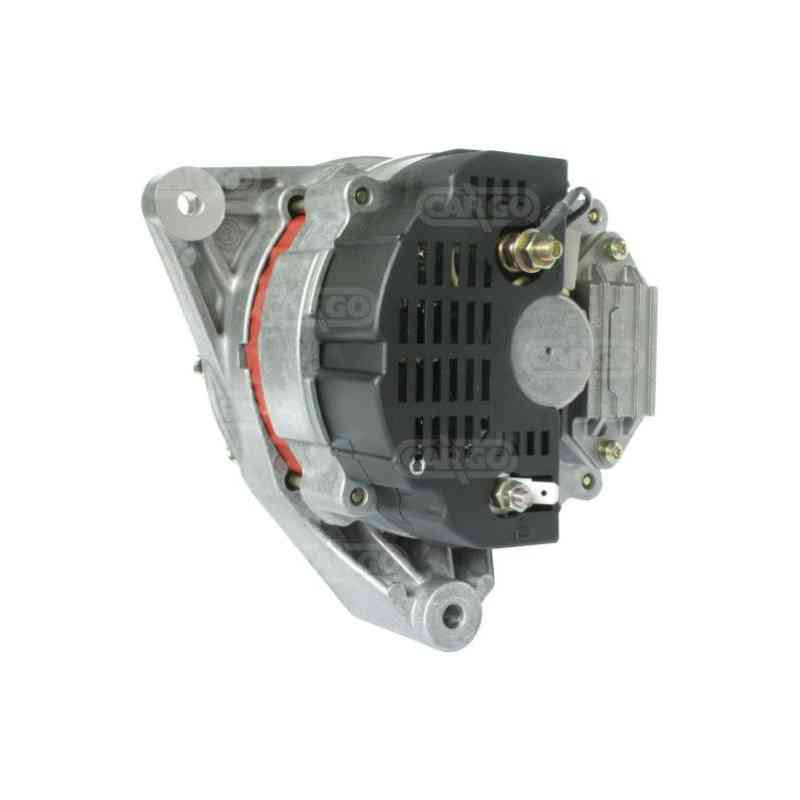

alternator 14V 50amp Bosch 0120300530, 0120300531, 0120339524, 0120339525, open 1204102, 1204110
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Characteristics:
Electric information
Voltage 14
amp. 50
physical information

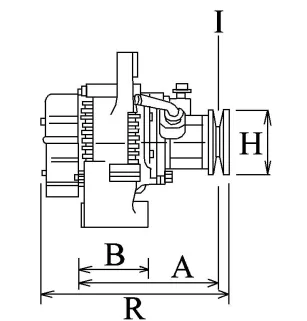

a dist. Pulley 78.50
B Arm width 56.00
D Diameter of the hole M8
e Angle paste tensioner 10
g Diameter hole of the paw M8
H POULLI DIA. 72.50
I GRAINURES DE LA POULUL 1

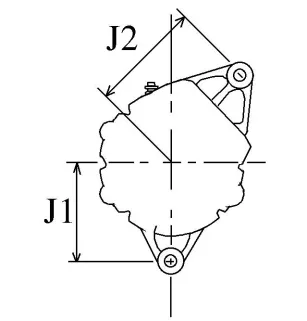

J Radius 89.50
J Radius 2 88.50
K B + M6
k Position B + in min. 56
L D+ size 6.30
n Rotation CW
R Total length mm 171.00
Source Mahle Lettrika
Information Catalogs
Poulie Poulie
type Ir
info Product BN
for Citroen, Opel, Peugeot, Vauxhall
replaces the following references:
} 0120300530 Bosch
0120300531 Bosch
012039524
0120339525 Bosch
1204102 OPEL
1204110 OPEL
2927990 VALEO
510-249 Motorola
858885 BUTEC
860150 BUTEC
Compatible with the following vehicles:
box, agricultural machines
Citroen, light vehicle eu
deutz-Fahr, agricultural machines
Fendt, agricultural machine} Goldoni, agricultural machines
Opel, light vehicle eu
Peugeot, light vehicle eu
vauxhall, light vehicle eu
alternator 14V 50amp Bosch 0120300530, 0120300531, 0120339524, 0120339525, open 1204102, 1204110
