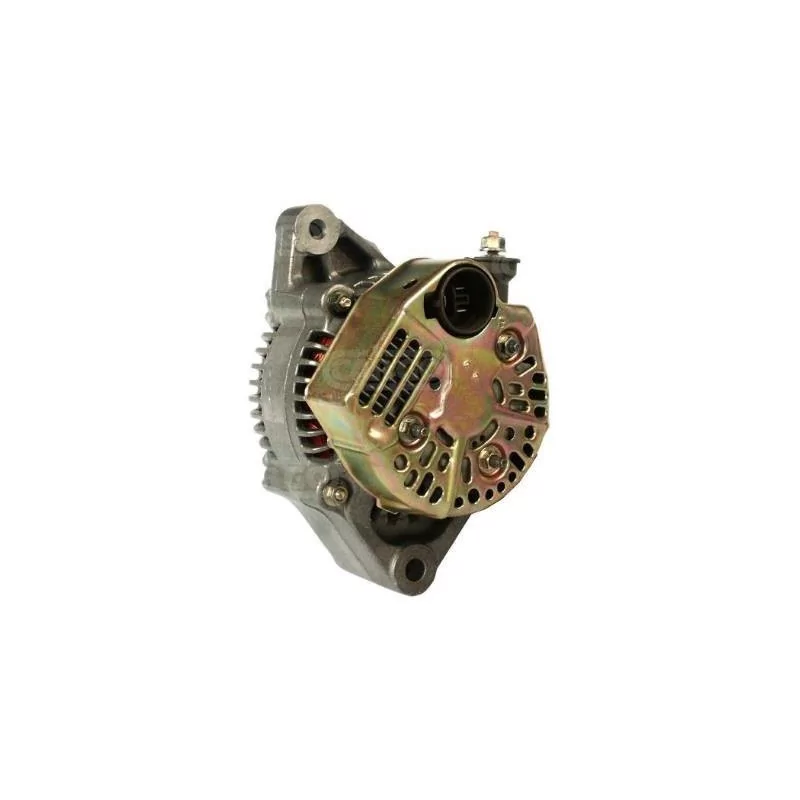

Alternator 14 Volts 45 A, Bosch 0986035901, Toyota 27060-10030
  • Alternator 14 Volts 45 A, Bosch 0986035901, Toyota 27060-10030
  • Alternator 14 Volts 45 A, Bosch 0986035901, Toyota 27060-10030
  • Alternator 14 Volts 45 A, Bosch 0986035901, Toyota 27060-10030
  • Alternator 14 Volts 45 A, Bosch 0986035901, Toyota 27060-10030
  • Alternator 14 Volts 45 A, Bosch 0986035901, Toyota 27060-10030
  • Alternator 14 Volts 45 A, Bosch 0986035901, Toyota 27060-10030

Alternator 14V 45mp, Denso 100211-1280, 100211-1440, 100211-1441, 100211-1560, 100211-1561, 100211-1600, 100211-1601

110628

Alternator 14V 45mp, Denso 100211-1280, 100211-1440, 100211-1441, 100211-1560, 100211-1561, 100211-1600, 100211-1601

€175.46
VAT included
€146.21 VAT excluded
LIVRAISON 24/48H
Quantity
IN STOCK - IMMEDIATE DELIVERY

  Delivery policy

(edit with the Customer Reassurance module)



  Security policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Alternator 14V 45mp, Denso 100211-1280, 100211-1440, 100211-1441, 100211-1560, 100211-1561, 100211-1600, 100211-1601

  • BRAND: BOSCH
  • New Alternator
  • warranty: 2 years
  • No deposit
  • Original quality


CHARACTERISTICS:
Electrical information
Voltage 14
Amp. 45

Physical information

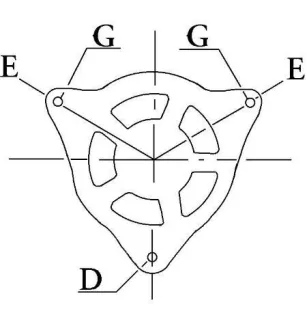

At Dist. pulley 90.00
B Arm width 58.10
D Hole diameter 10.20
E Tensioner bracket angle 3
G Tab hole diameter M8
H Pulley dia. 49.00
I Pulley grooves 4
J Radius 80.00
J Radius 2 73.00
K B + M6
K Position B+ in min. 5

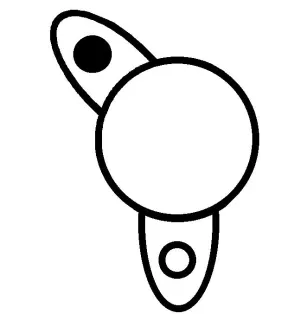

L D+ Size Plug
N Rotation CW
O Plug No PL12
R Overall Length mm 147.00

Catalog Information
Pulley Serpentine Pulley
Regulator Type Ir
Vacuum Pump No
Product Info Bn
For Toyota

REPLACES THE FOLLOWING PART NUMBERS:
100211-1280 Denso
100211-1440 Denso
100211-1441 Denso
100211-1560 Denso
100211-1561 Denso
100211-1600 Denso
100211-1601 Denso
100211-3501 Denso
100211-4170 Denso
100211-4171 Denso
100211-4280 Denso
100211-4290 Denso
100211-4400 Denso
100211-6860 Denso
100211-6861 Denso
27060-10030 Toyota
27060-10050 Toyota
27060-10051 Toyota
27060-10070 Toyota
27060-10071 Toyota
27060-10080 Toyota
27060-10100 Toyota
27060-11000 Toyota
JA141IR HC-PARTS

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Toyota, Light Vehicle EU
Toyota, Light Vehicle US
Toyota, Light Vehicle Asia and Oceania

Product Details
110628
New

Data sheet

Tension
14 Volts
Ampérage
45A

Specific References

UPC
400000042183
EAN13
4000000042129
