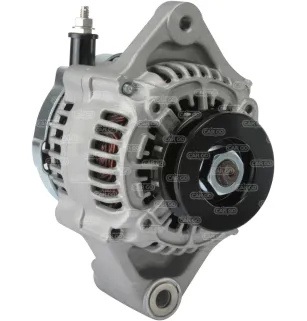

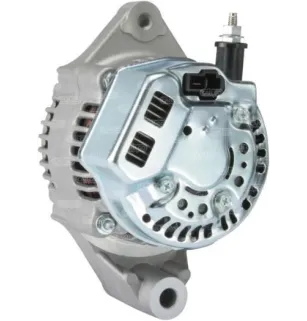

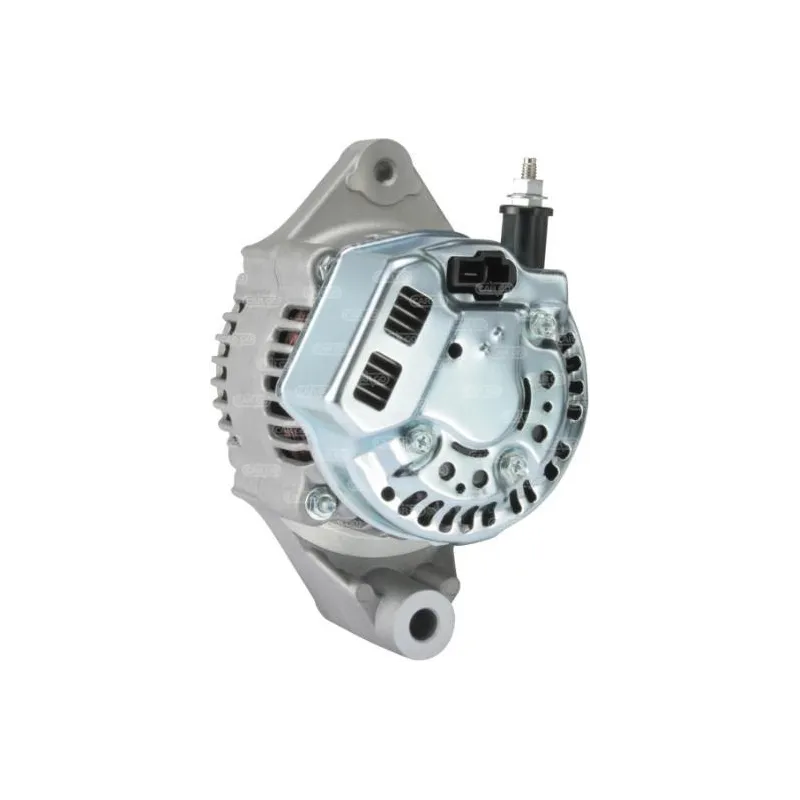

Alternator 14V 45Amp Denso 100211-3370,100211-5730, 100211-6660, 100211-6730, 101211-3370

Alternator 14V 45Amp Denso 100211-3370,100211-5730, 100211-6660, 100211-6730, 101211-3370

• BRAND: BOSCH
• New Alternator
• Warranty: 2 years
• Without Deposit
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 45

Physical Information
At Dist. pulley 95.75
B Arm width 58.00
D Hole diameter 10.40
E Tensioner bracket angle 60
G Tab hole diameter M8
H Pulley dia. 63.25
I Pulley grooves 1
J Radius 79.00
J Radius 2 73.50
K B + M6
K Position B+ in min. 6
L D+ Plug Size
N Rotation CW

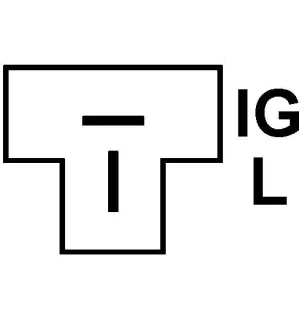

O Plug No PL10
R Total Length mm 165.50
Lamp Inactive

Catalog Information
Pulley Pulley
Regulator Type Ir
Vacuum Pump No
Product Info Bn
For Daihatsu, Piaggio


REPLACES THE FOLLOWING PART NUMBERS:
100211-3370 Denso
100211-5730 Denso
100211-6660 Denso
100211-6730 Denso
101211-3370 Denso
101211-3770 Denso
2706087112 Daihatsu
27060-87112-000 Daihatsu
27060-87512 Toyota
27060-87512-000 Daihatsu
27060-87601 Toyota
27060-87601-000 Daihatsu
27060-87602 Toyota
27060-87602-000 Daihatsu
27060-87Z06 Toyota
JA880IR HC-PARTS

FITS THE FOLLOWING VEHICLES:
Daihatsu, Light Vehicle EU
Piaggio, Light Vehicle EU
