Alternator 14V 40Amp, DAF 1516881R, Suzuki 31400-8001031400-80011, Ford 3C2411000AA, 3C2Z11002AA, Subaru 42990-5600

Alternator 14V 40Amp, DAF 1516881R, Suzuki 31400-8001031400-80011, Ford 3C2411000AA, 3C2Z11002AA, Subaru 42990-5600

• BRAND: BOSCH
• New Alternator
• warranty: 2 years
• Without Deposit
• Origin Quality

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 40

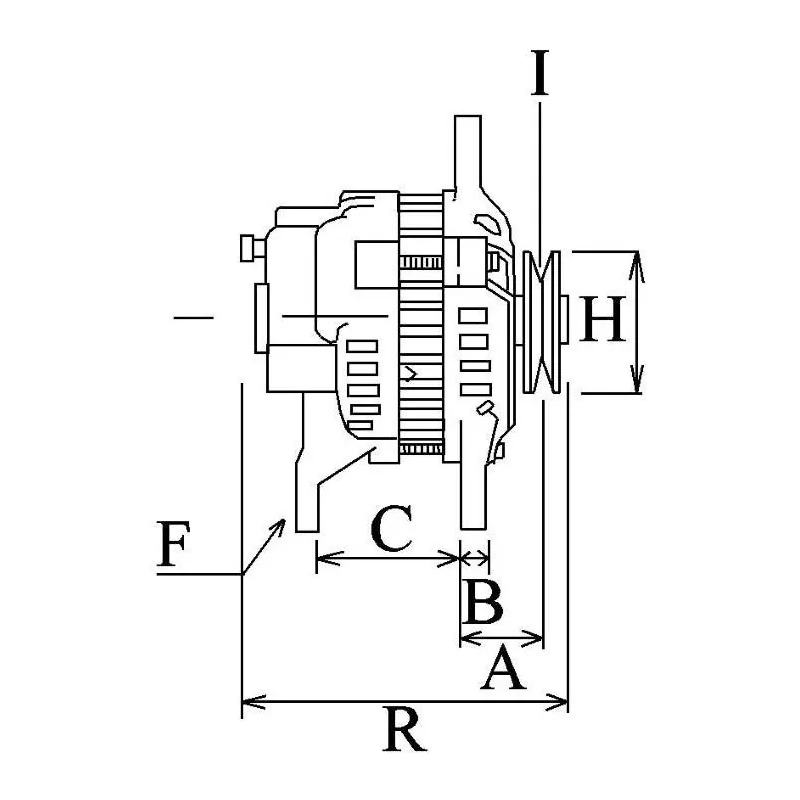

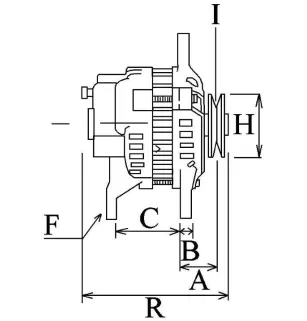

Physical Information
A Dist. pulley 41.00
B Width of arms 15.00
C Distance between supports 66.00
D Hole diameter 8.50
E Angle of tensioner paste 60
G Diameter of the tab hole M8
H Pulley dia. 73.00
I Pulley grooves 1

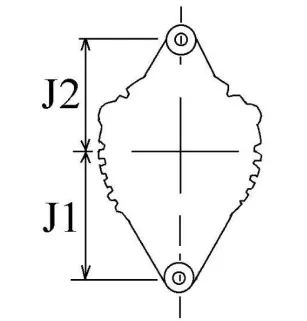

J Radius 78.00
J Radius 2 78.00
K B + M6
K Position B+ in min . 2
N Rotation CW

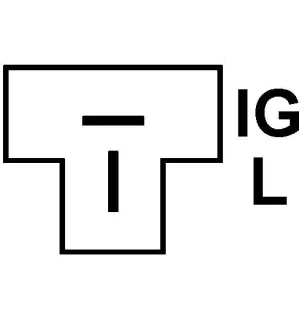

O Socket not PL10
R Total length mm 144.00

Information Catalogues
Pulley Pulley
Regulator type Ir
Vacuum pump No
Product info Bn
For Suzuki, Bedford, Sabaru

REPLACES THE FOLLOWING REFERENCES:
1516881R DAF
31400-80010 Suzuki
31400-80011 Suzuki
3C2411000AA Ford
3C2Z11002AA Ford
42990-5600 Subaru
A001T33771 Mitsubishi
A1T33771 Mitsubishi
E9SFBA Ford
JA171IR HC-PARTS
LR140-128 Hitachi

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Subaru, EU Light Vehicle
Suzuki, EU Light Vehicle
