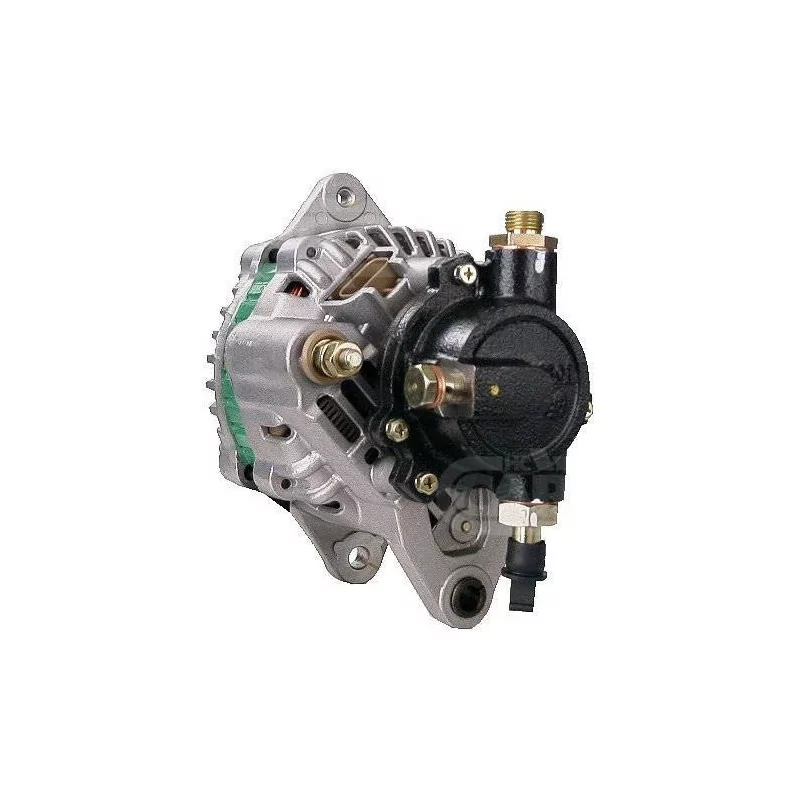

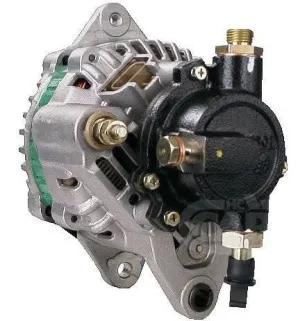

Alternator 14V 100Amp Opel 6204043, 6204047, 90371768, Isuzu 8971502010, 8971502011

Alternator 14V 100Amp Opel 6204043, 6204047, 90371768, Isuzu 8971502010, 8971502011

• BRAND: BOSCH
• Alternator: 2 years
• Without Deposit
• Original Quality

SPECIFICATIONS:
Electrical Information
    Voltage     14
    Amp.     100
    Terminal     W

Physical Information
A     Pulley Dist.     42.00
B     Arm Width     13.00
C     Bracket Dist.     77.00
D     Hole Diameter     10.50
E     Tensioner Angle     60
G     Leg Hole Diameter     M8
H     Pulley Dia. 80.50
I     Pulley grooves     1
J     Radius     88.50
J     Radius 2     84.00
K     B +     M8
K     Position B+ in min. 55
N     Rotation     CW
O     Plug no     PL50
Q     Plug type W     Plug
R     Total length mm     213.00

Information Catalogs
    Pulley     Pulley
    Regulator type     Ir
    Vacuum pump     Yes
    Product info     Bn
    For     Opel

REPLACES THE FOLLOWING PART NUMBERS:
6204043     Opel
0010}
9512039    Opel
97150201    Opel
JA1370IR    HC-PARTS
LR1100-501    Hitachi
LR1100-501B     Hitachi
R1030094     Opel

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Opel, Light Vehicle EU
