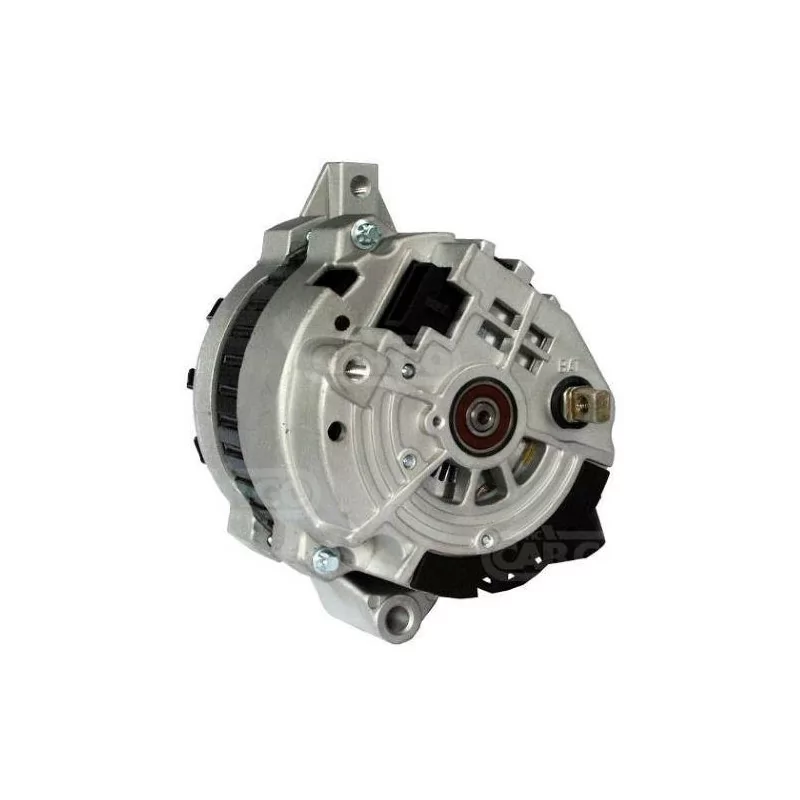

Alternator 14V 100/105Amp Remy (delco) 10463011, 10463012, 10463015, 10480085, 1101137

Alternator 14V 100/105Amp Remy (delco) 10463011, 10463012, 10463015, 10480085, 1101137

• BRAND: BOSCH
• New Alternator
• warranty: 2 years
• Without Deposit
• Quality Origin

CHARACTERISTICS:
Electrical Information
Voltage 14
Amp. 100/105

Physical Information

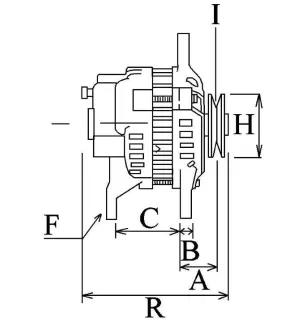

At Dist. pulley 74.00
B Arm width 51.00
D Hole diameter 10.00
E Tensioner bracket angle 60
G Tab hole diameter M8
H Pulley dia. 56.00
I Pulley grooves 5

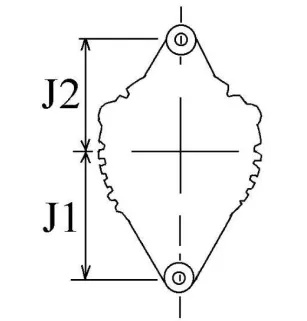

J Radius 84.40
J Radius 2 83.40
K B + M6
K Position B+ in min. 15
L D+ Size Plug
N Rotation CW

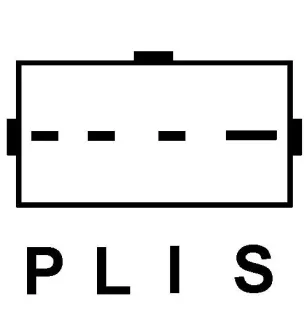

O Plug no PL24
R Total length mm 170.00

Information Catalogs
Pulley Serpentine pulley
Regulator type Ir
Vacuum pump No
Product info Bn
For Chevrolet, Pontiac
Remarks Replaces: CS130.

REPLACES THE FOLLOWING REFERENCES:
10463011 Remy (delco)
10463012 Remy (delco)
015 Remy (delco)
10480085 Remy (delco)
1101137 Remy (delco)
1101138 Remy (delco)
1101141 Remy (delco)
8AR2066FA Motorola USA
8F Motorola USA

COMPATIBLE WITH THE FOLLOWING VEHICLES:
Chevrolet, Light Vehicle EU
Chevrolet, Light Vehicle US
Pontiac, Light Vehicle US
