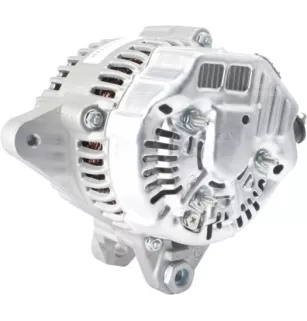

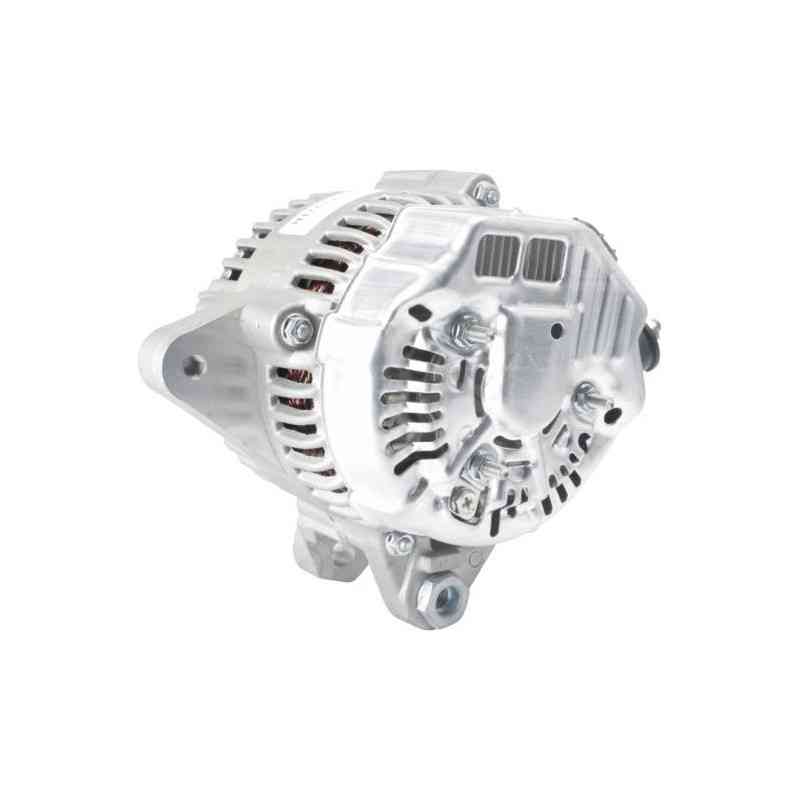

Altering 14v 90amp Denso 102211-2120, 102211-2250, 102211-2380, 102211-2480

Altering 14V 90AMP DENSO 102211-2120, 102211-2250, 102211-2380, 102211-2480

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     90

physical information
a dist. Pulley 34.00
B Arm width 17.00
C Dist. Between support 46.00
D Diameter of the hole 11.10
e Angle paste tensioner 15
g Diameter hole of the paw M8
h Poulie dia.     55.00
I GRAINURES OF THE PULL 7
J Radius 84.00
J Radius 2 86.00
K B + M6
k Position B + in min.     13

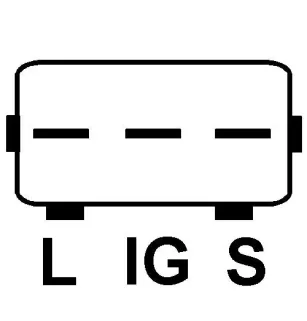

L D+ Plug size
n Rotation CW
o STAGE NO PL42
R Total length mm 170.00

Information Catalogs
POLUL SP
Type regulator IR

replaces the following references:
102211-2120 DENSO
102211-2250 DENSO} 102211-2380 DENSO
102211-2480 DENSO
27060-0H010 TOYOTA
27060-28110 TOYOTA
27060-28120 TOYOTA
27060-28170 TOYOTA} Ja1792ir hc-parts

Compatible with the following vehicles:
toyota, light vehicle eu
toyota, light vehicle Asia and Oceanie
}
