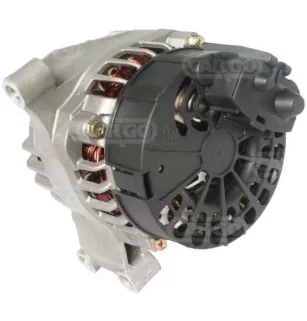

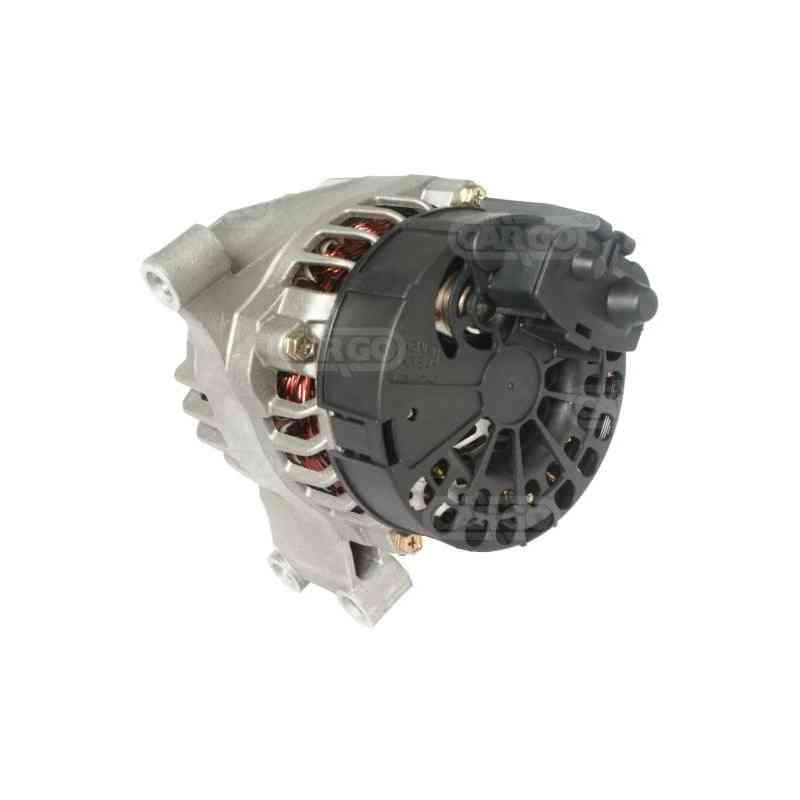

Altering 14V 85amp Denso 102211-8450, 102211-8451, 102211-8470, 102211-8471

Altering 14v 85amp Denso 102211-8450, 102211-8451, 102211-8470, 102211-8471

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     85

physical information
a dist. Pulley 16.30
B Arm width 24.20
C Dist. Between support 51.00
D Diameter of the hole 10.50
e Angle paste tensioner 5
g Diameter hole of the paw 8.60
h Poulie dia.     54.00
I GRAINURES OF THE PULUL 5
J Radius 96.00
J Radius 2 97.00
K B + M8
k Position B + in min.     13
L D+ size M5
n Rotation CW
R Total length mm 184.50

Information Catalogs
POULUL SP
FANTILLER IF
Type REGULATOR IR
Vacuum pump No
Info Product BN
for Fiat, Lancia

replace the following references:
102211-8450 Denso
102211-8451 DENSO
102211-8470 DENSO
102211-8471 DENSO
1535437 FORD
1673521 FORD
1986a00733 Bosch
46554404 Fiat
46748357 Fiat
51709131 Fiat
51714791 Fiat
51859038 Fiat
63 Magneti Marelli
63321775 Magneti Marelli
63377013 Magneti Marelli
9S5110346BA Ford
9S5110346BB Ford
Ca1742ir hc-part}}
Compatible with the following vehicles:
fiat, light vehicle eu
fiat, US light vehicle
ford, light vehicle eu
Lancia, light vehicle eu
