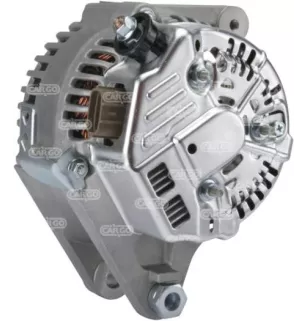

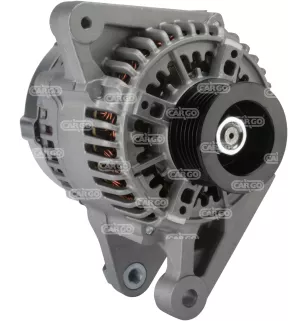

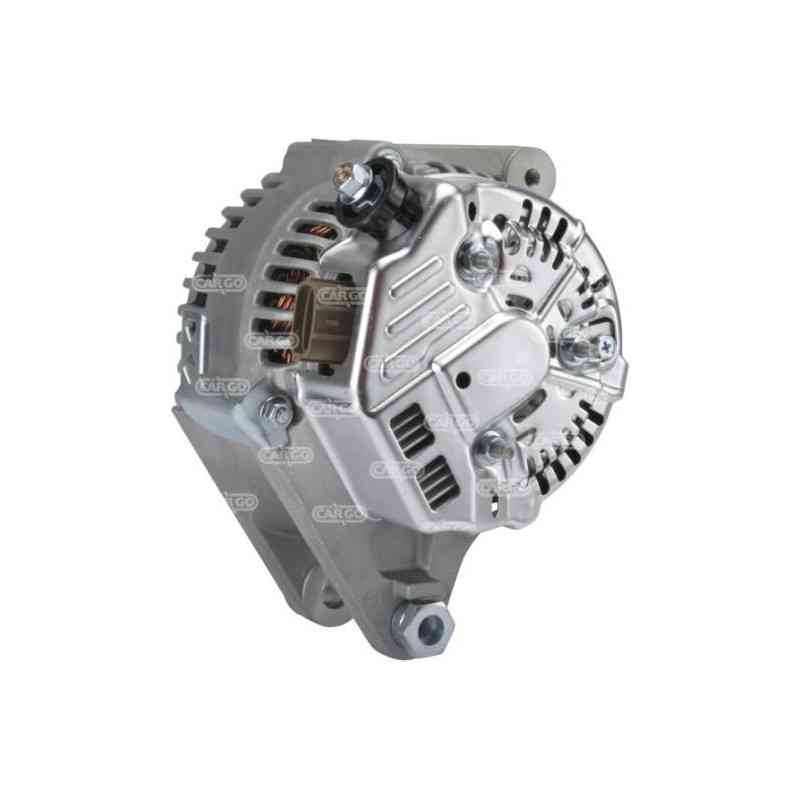

Altering 14V 80AMP DENSO 100211-1910, 102211-1900, 102211-1910, 102211-1920

Altering 14V 80AMP DENSO 100211-1910, 102211-1900, 102211-1910, 102211-1920

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     80

physical information
a dist. Pulley 34.00
B Arm width 22.00
C Dist. Between support 40.50
D Diameter of the hole 11.00
e Angle paste tensioner 50
g Diameter hole of the paw M8
H Pulley Dia.     54.50
I RAINURES DE LA POULUL 6
J Radius 99.00
J Radius 2 89.00
K B + M6
k Position B + EN MIN.     50
L D+ Plug size
n Rotation CW
o STAGE NO PL42
R Total length mm 169.00

Information Catalogs
POLUL SP
Type REGULATOR IR
Info Product BN

replaces the following references:
100211-1910 DENSO
102211-1900
102211-1910 Denso
102211-1920 Denso
102211-2020 Denso
102211-2022 DENSO
102211-2180 DENSO
102211-2290 DENSO
102211-2340 denso
102211-2610 DENSO
102211-5510 DENSO
102211-5511 DENSO
1986a01320 BOSCH
27060-0D050 TOYOTA
27060-0D060 Toyota
27060-0D110 Toyota
27060-22020 Toyota
27060-22030 Toyota
27060-22040 Toyota
27060-22100 Toyota
27060-22120 TOYOTA
27060-22130 TOYOTA
27060-22160 TOYOTA
27060-22180 TOYOTA
27060-22190 TOYOTA
27060
ja1703ir hc-parts

Compatible with the following vehicles:
toyota, light vehicle eu
