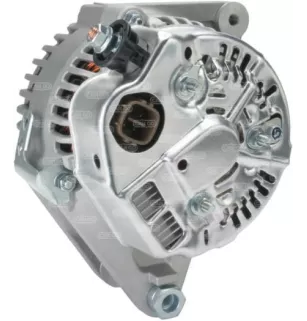

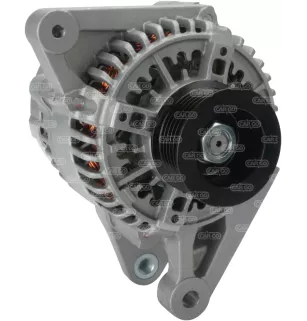

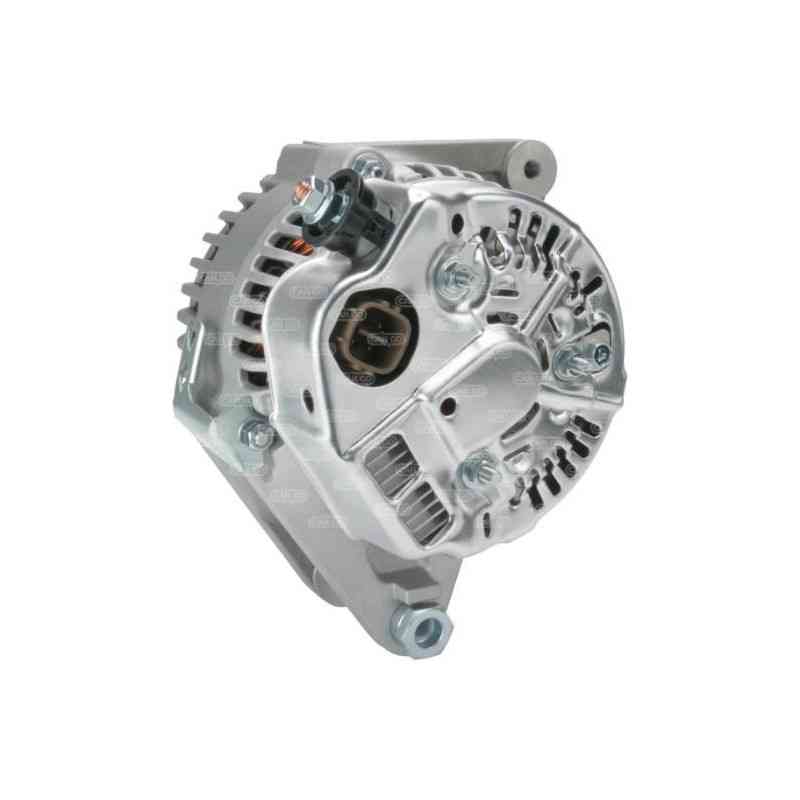

Altering 14v 80amp Bosch 0124315016, 0124315024, 0124315025, 0124315029, 0124315045

altering 14v 80amp Bosch 0124315016, 0124315024, 0124315025, 0124315029, 0124315045

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     80

physical information

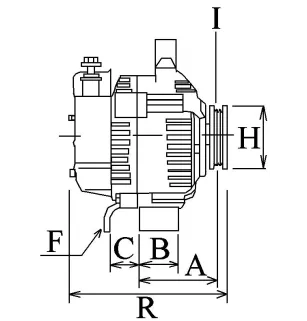

a dist. Pulley 33.45
B Warm width 17.85
C Dist. Between support 40.00

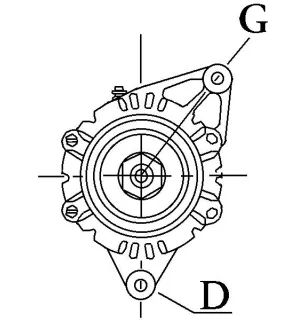

D Diameter of the hole 11.00
e Angle paste tensioner 50
g Diameter hole of the paw M8
H Pulley dia.     54.50
I RAINURES DE LA POULUL 6

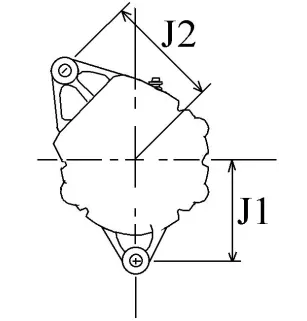

J Radius 99.25
J Radius 2 89.35
K B + M6
k Position B + in min.     55
L D+ Plug size
n Rotation CW
o STAGE NO PL78
R Total length mm 169.00
Type terminal IG-L-C-FR

Information Catalogs
POLUL SP
Type REGULATOR IR
Vacuum pump no
for TOYOTA
}
replaces the following references:
0124315016
0124315024 Bosch
0124315025 Bosch
0124315029 Bosch
0124315045 Bosch
102211-8490 Denso
1986a00451
1986a00774 bosch
27060-007NL TOYOTA
27060-0D020 TOYOTA
27060-0D02084 TOYOTA
27060-0D030 TOYOTA
27060-0D130F TOYOTA
27060-0D160 Toyota
27060-165FL Toyota
27060-22010 Toyota
ja1605ir hc-parts

Compatible with the following vehicles:
Toyota, light vehicle in
toyota, light vehicle Asia and Oceania
