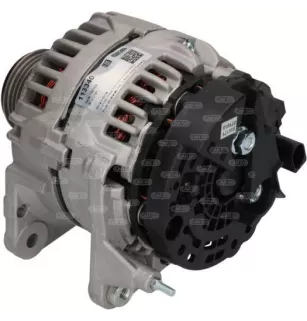

Altering 14v 70amp Bosch 0124315001, 0124315032, Volkswagen 038903023, 038903023K

Altering 14v 70amp Bosch 0124315001, 0124315032, Volkswagen 038903023, 038903023K

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     70

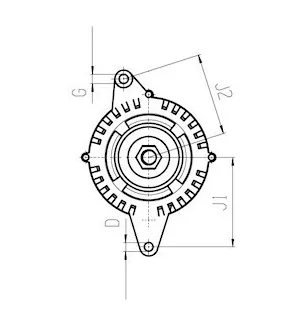

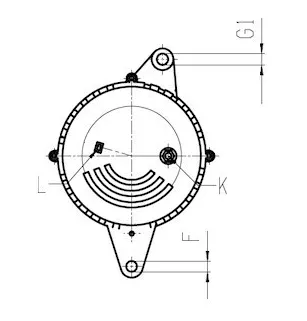

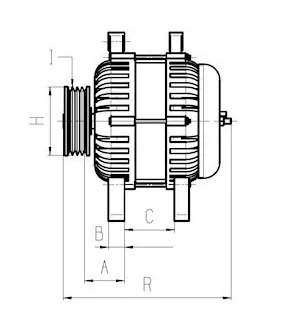

physical information
a dist. Pulley 39.00
B Arm width 14.00
C Dist. Between support 62.00
D Diameter of the hole 8.50
e Angle paste tensioner 45
g Diameter Trou de la Patte 8.70
H Pulley DIA.     56.00
I GRAINURES OF THE PULL 6
J Radius 86.00
J Radius 2 90.00
K B + M8
k Position B + in min.     50

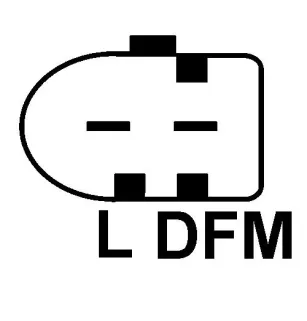

L D+ Plug size
n Rotation CW
o STAGE NO PL61
R Total length mm 192.50

Information Catalogs
POLUL SP/FW
Type REGULATOR IR
for VW, AUDI, SKODA, SEAT

replaces the following references:
0124315001 BOSCH} 0124315032 Bosch
038903023 Volkswagen
038903023K Volkswagen
038903023Q Volkswagen
038903024B Volkswagen
254244 VALEO
9517403 Magneton (PAL/SKODA)
CA1502IR HC-PARTS
SG8B027 VALEO
AAK5547 ISKRA

Compatible with the following vehicles:
Audi, light vehicle EU
SEAT, light vehicle EU
Skoda, light vehicle EU
VW, light vehicle EU
VW, Light vehicle Asia and Oceania
