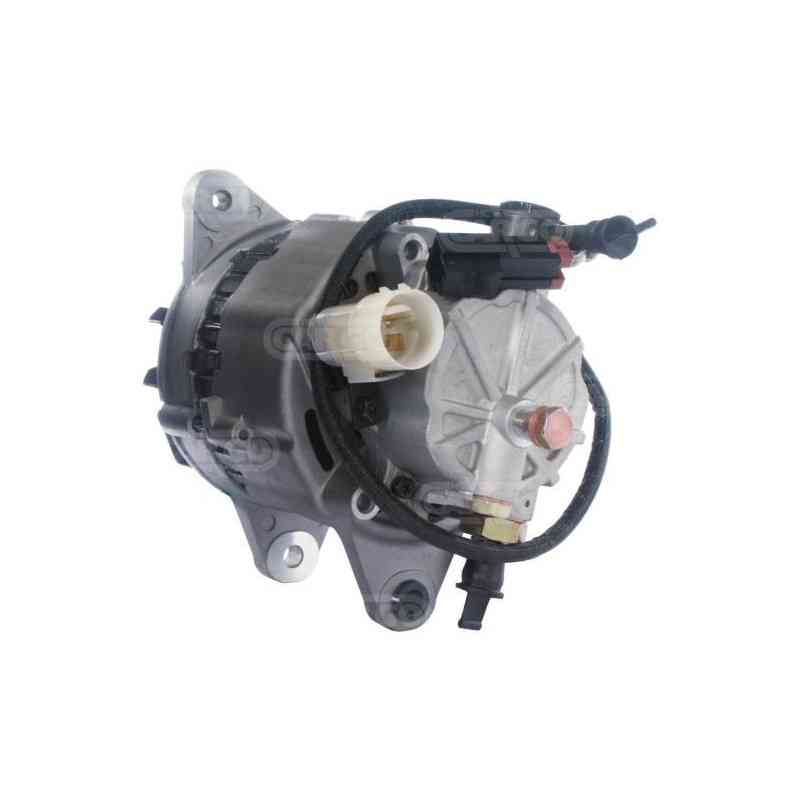

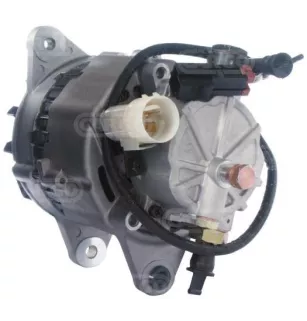

altering 14v 60amp Opel 09120578, isuzu 8970716110, 8970746110, 8971347620
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Characteristics:
Electric information
voltage 14
amp. 60

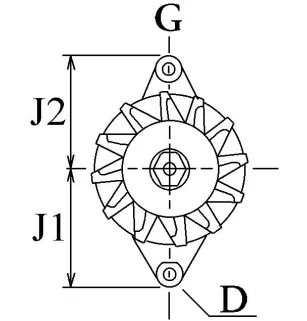

physical information
a dist. Pulley 48.00
B Arm width 13.00
C Dist. Between support 80.50
D Diameter of the hole 10.50
e Angle paste tensioner 5
g Diameter hole of the paw M8
h Poulie dia. 82.75
I GRAINURES OF THE PULL 1
J Radius 89.00
J Radius 2 86.00
K B + M5-9.40
k Position B + in min. 10

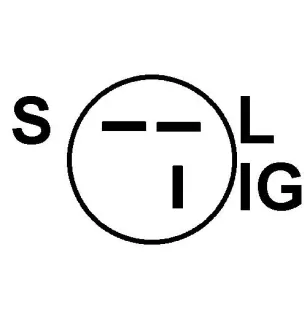

L D+ Plug size
n Rotation CW
o STAGE NO PL32
R Total length mm 242.50
Information Catalogs
Pulley Pulley
type Ir
empty pump yes
info Product Bn
for isuzu, Opel, Vauxhall
} Replace the following references:
09120578 OPEL
8970716110 ISUZU
8970746110 ISUZU
8971347620 ISUZU
8971347810 ISUZU
89714785
8971876550 ISUZU
9120606 OPEL
9512324 OPEL
97037724 OPEL
97074611 OPEL
97134762 OPEL
97134781 OPEL
97147851 OPEL
97187655 OPEL
ja873ir HC-PARTS
LR160-446 Hitachi
LR160-446B HITACI
LR160-446C HITACHI} LR160-446E Hitachi
R1030083 OPEL
Compatible with the following vehicles:
isuzu, light vehicle eu
opel, light vehicle eu
Vauxhall, light vehicle}
