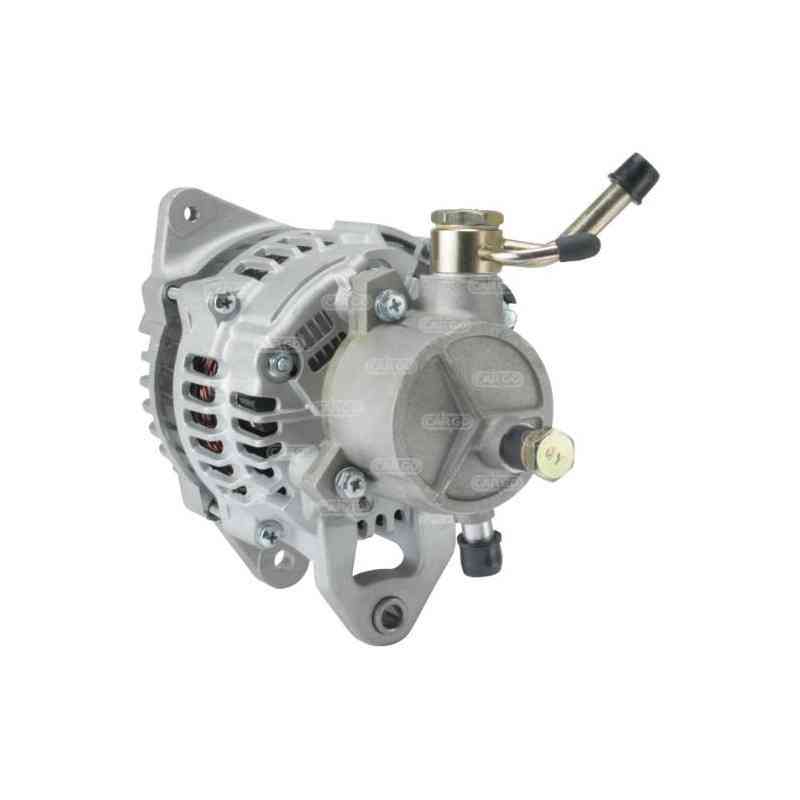

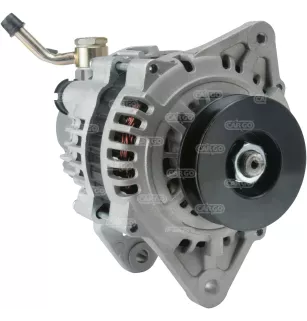

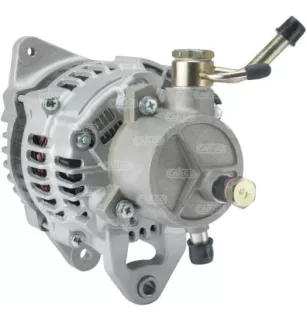

Altering 14V 60amp ISUZU 8972458502, Hitachi LR160-503, LR160-503E

altering 14V 60amp Isuzu 8972458502, Hitachi LR160-503, LR160-503E

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     60

physical information
a dist. Pulley 50.00
B Arm width 13.50
C Dist. Between support 83.50
D Diameter of the hole 10.30
e angle paste tensioner 8
g Diameter hole of the paw M8
h Poulie dia.     84.00
I GRAINURES DE LA POULUL 1

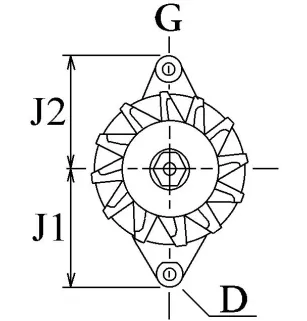

J Radius 84.00
J Radius 2 88.00
K B + M8
k Position B + in min.     10

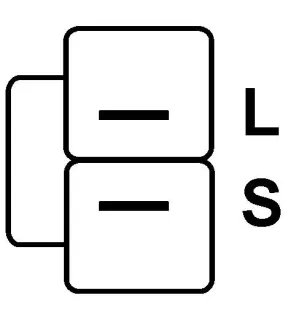

L D+ Plug size
n Rotation CW
o NO PL07 socket
R Total length mm 262.00

Information Catalogs
Poulie P
type Ir
empty pump yes
info product BN
for isuzu

replaces the following references: }} 8972458502 isuzu
LR160-503 Hitachi
LR160-503E Hitachi

Compatible with the following vehicles:
isuzu, Asia and Oceanie Light vehicle} Isuzu, Light vehicle eu
