Altering 14V 60amp Denso 100213-0220, 100213-0230, 100213-0231, 100213-0250

altering 14v 60amp Denso 100213-0220, 100213-0230, 100213-0231, 100213-0250

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     60

physical information
a dist. Pulley 46.00
B Arm width 13.00
C Dist. Between support 99.00
D Diameter of the hole 10.50
e Angle paste tensioner 5
g Diameter hole of the paw M8
h Poulie dia.     67.00
i Rainures of the pulley 2

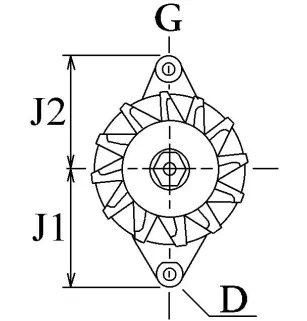

J Radius 84.00
J Radius 2 90.00

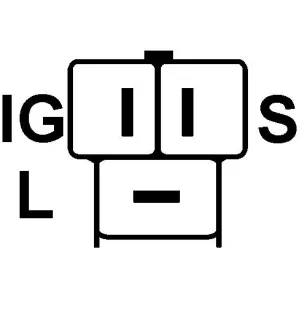

K B + M6
k position B + in min.     2
n Rotation CW
o STAGE NO PL19
R Total length mm 268.00

Information Catalogs
Pulley DP
Type REGULATOR IR
Vacuum pump Yes

replaces the following references:
100213-0220 DENSO
100213-0230
100213-0231 DENSO
100213-0250 DENSO
100213-0290 DENSO
100213-0291 DENSO
100213-0770 DENSO
100213-0790 DENSO
100213-1180 denso
100213-1300 DENSO
100213-1700 DENSO
121000-0730 DENSO
121000-0731 DENSO
121000-0940 DENSO} 27020-54150 Toyota
27020-54180 Toyota
27020-54542 Toyota
27040-54030 Toyota
27040-54040 Toyota
27040-54050 Toyota
27040-54060 Toyota
27040-54080 Toyota
27040-54100 Toyota
27040-54151 Toyota
27040-54270 Toyota
27040-54271 Toyota
27040-64010 Toyota
ja799ir HC-Parts
}
Compatible with the following vehicles:
Toyota, Asia and Océanie Light vehicle} Toyota, light vehicle eu
VW, light vehicle eu
