Altering 14v 45amp Lucas 23697, 23739, 23740, 23807, 23814

altering 14v 45amp Lucas 23697, 23739, 23740, 23807, 23814

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     45
terminal S

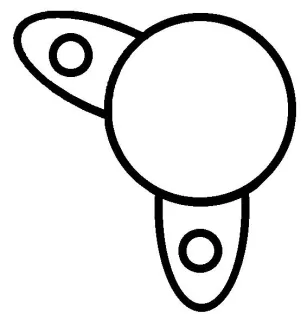

Physical information
B Arm width 9.10
C Dist. Between support 87.80
D Diameter du hole 8.10
e Angle paste tensioner 50
g Diameter Trou de la Patte 8.10
J Radius 82.00
J Radius 2 83.00

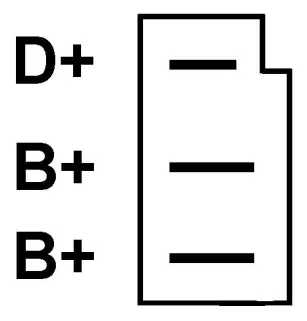

K B + 9.40
k position B + in min.     23
L D+ Size 6.30
o STAP NO PL22
R Total length mm 166.00

Information Catalogs
Pulley without
type Ir
Vacuum pump no
Info Product Bn
for Austin, Land Rover
Info to be used only with thermal resistance on battery.

replaces the following references:
23697 Lucas
23739 Lucas
23740 Lucas
23807 Lucas
23814 Lucas} 23830 Lucas
23842a Lucas
23846 Lucas
23993 Lucas
24072 Lucas
24079 Lucas
24211A Lucas
54021879 Lucas} 61920286 Lucas
9ar2683 Motorola
Ca290ir hc-Parts

Compatible with the following vehicles:
Austin, light vehicle eu
