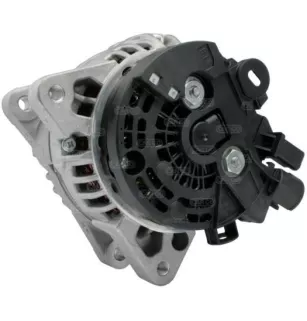

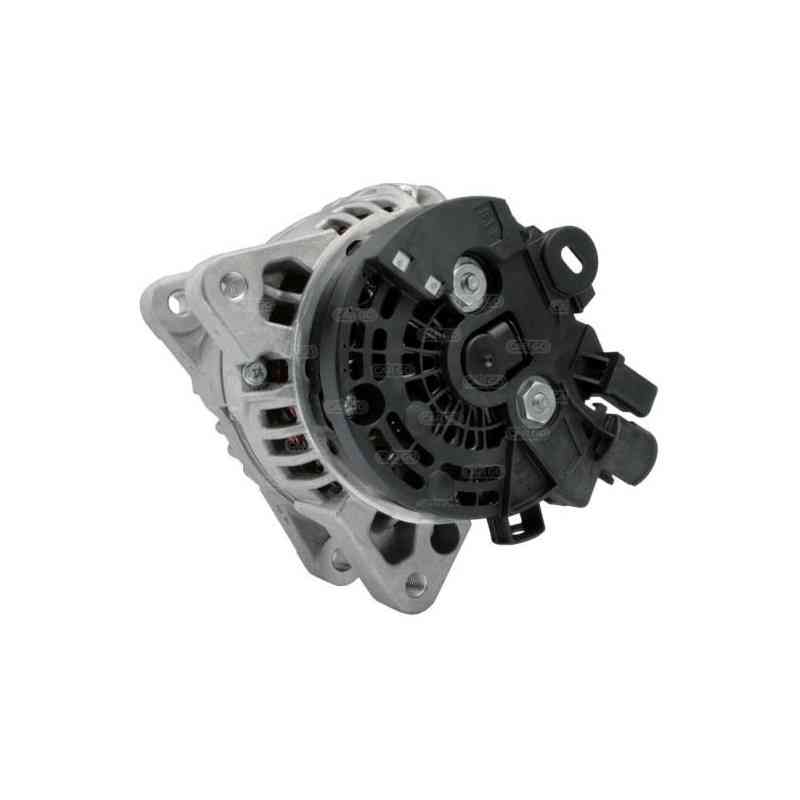

Altering 14V 150AMP BOSCH 0124525034, 104210-3170, 104210-3171, 104210-3240

altering 14V 150AMP BOSCH 0124525034, 104210-3170, 104210-3171, 104210-3240

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     150

physical information
a dist. Pulley 43.00
B Arm width 21.00
C Dist. Between support 45.10
D Diameter of the hole 10.70
e Angle paste tensioner 13
g Diameter hole of the paw 10.20
H Pulley dia.     54.20
I GRAINURES DE LA POULUL 6
J Radius 90.00
J Radius 2 90.00
K B + M8
k Position B + in min.     20

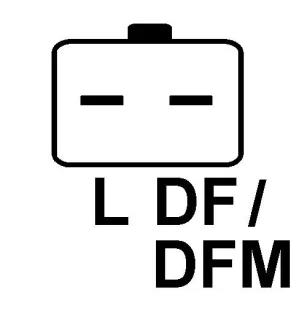

L D+ Plug size
n Rotation CW
o NO PL72 socket
R Total length mm 175.00

Information Catalogs
POLUL SP
Type REGULATOR IR
Vacuum pump no
info Product BN
for Citroen, Peugeot

Replace the following references: } 0124525034 BOSCH
104210-3170 DENSO
104210-3171 DENSO
104210-3240 DENSO
104210-3241 DENSO
104210-4270 DENSO} 1986a00870 Bosch
2542472 Valeo
2542472a Valeo
2542557 Valeo
2542557a Valeo
2542704 Valeo
2542704a Valeo} 2542925 Valeo
2542925a Valeo
2543527 Valeo
27060-yu020 Toyota
27060-Yv020 Toyota
31400-73J00 Suzuki
31400-000 Suzuki
9639396480 Fiat
9640623580 PEUGEOT
9640628880 PEUGEOT
9646049980 PEUGEOT
96460668 PEUGEOT
96460680 FIAT
9646068880 Fiat
9646068880 PEUGEOT
9646476280 PEUGEOT
9646477580 PEUGEOT
A14VI40 VALEO
CA1674R HC-PARTS} K9639396480 Fiat
K9646066880 Fiat
Sg15s017 Valeo
tg15c022 Valeo
tg15c054 Valeo
tg15c119 Valeo} aan8119 Iskra

Compatible with the following vehicles:
citroen, light vehicle EU
Citroen, light vehicle Asia and Oceania
fiat, light vehicle EU
Lancia, light vehicle EU
Peugeot, light vehicle EU
