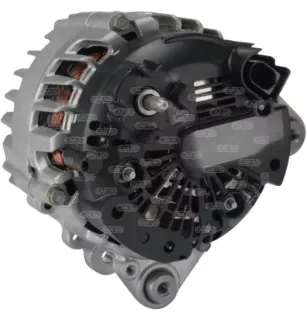

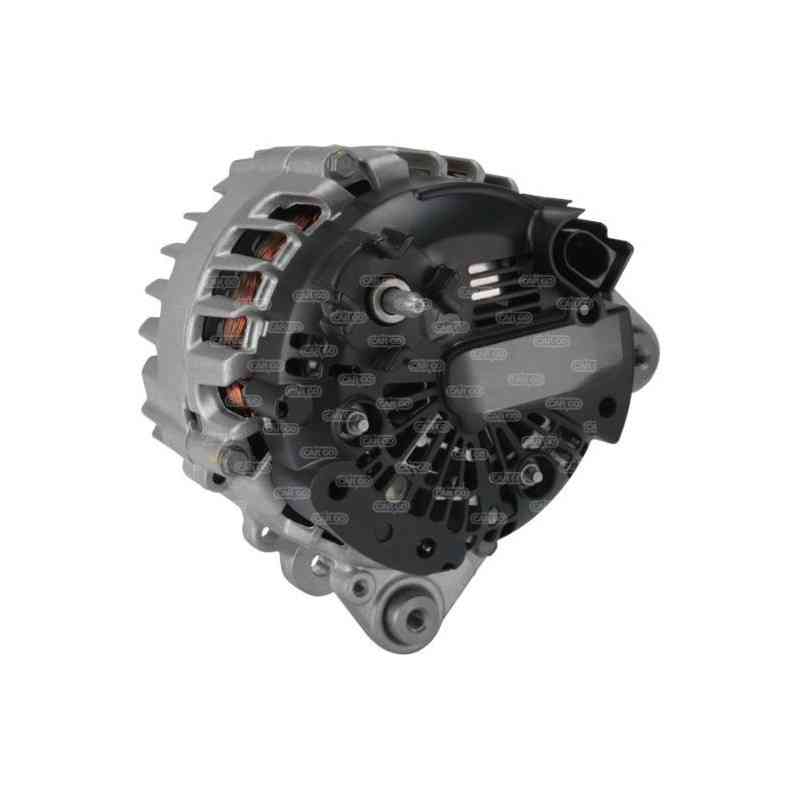

Altering 14v 140amp Volkswagen 03g903016g, 04l903021d, 04l903021h, 04l903023l

Altering 14V 140AMP Volkswagen 03G903016G, 04L903021D, 04L903021H, 04L903023L

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     140

physical information
a dist. Pulley 40.00
B Arm width 14.00
C Dist. Between support 61.00
D Diameter of the hole 8.50
e Angle paste tensioner 45
g Diameter Trou de la Patte 8.50
H Pulley DIA.     49.50
i Rainures of the pulley 6
J Radius 90.00
J Radius 2 90.00
K B + M8
k position B + in min.     50
L D+ Plug size
n Rotation CW
o NO PL86 socket

Information Catalogs
POLUL SP/FW
FANTILLER IF
Type REGULATOR IR
Vacuum pump No
for Audi

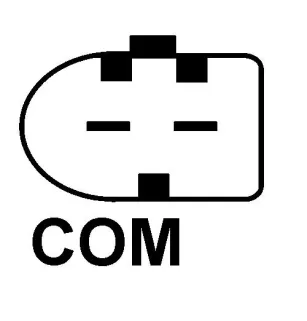

NOTIACTS This alternator is endowed with a com signal. We recommend that you check the correspondence via the reference reference.

replaces the following references:
03g903016g Volkswagen
04L903021D Volkswagen
04L903021H Volkswagen
04L903023 Volkswagen
1986a00613 Bosch
2543398a Valeo
2543398B Valeo
2715271a Valeo
Ca1986ir hc-parts
tg14c020 Valeo} TG14C078 VALEO
TG14C097 VALEO

Compatible with the following vehicles:
Audi, light vehicle EU
SEAT, light vehicle eu
Skoda, light vehicle} Eu
