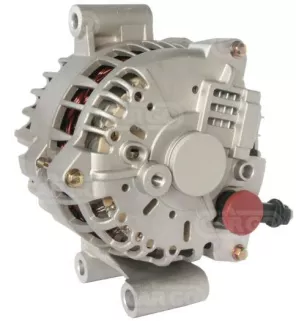

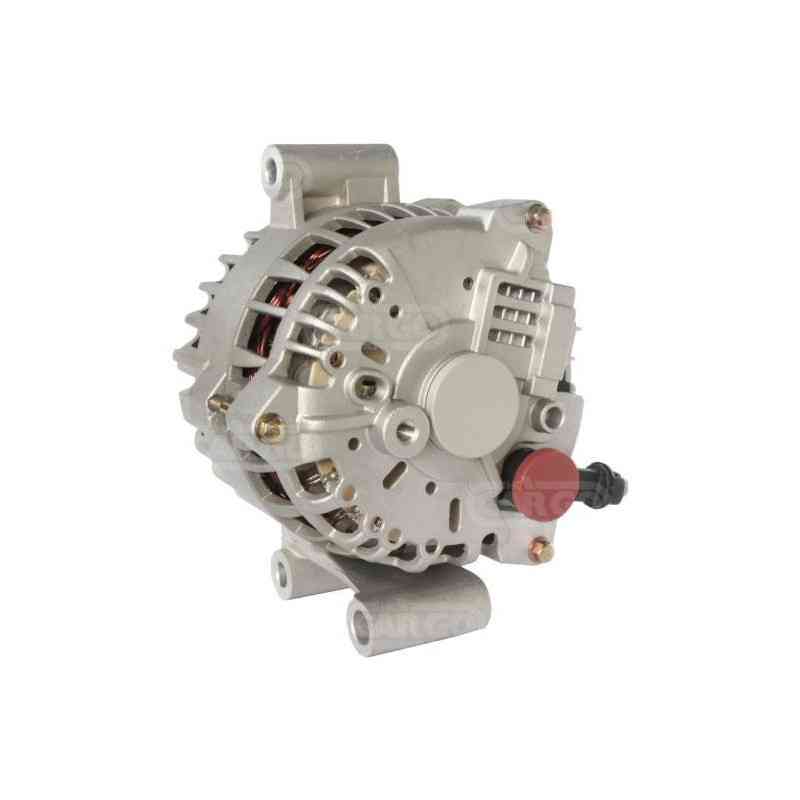

altering 14v 130amp Ford GL426, GL426RM, XF2U10300BC, XF2U10300BD, XF2U10300BE
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Characteristics:
Electric information
voltage 14
amp. 130
physical information
a dist. Pulley 39.50
B Arm width 55.50
C Dist. Between support 74.00
D Diameter of the hole 10.50
D Fixing hole Support 2 13.50
e Angle paste tensioner 60
g Diameter Trou de la Paw 10.20
H POULUL DIA. 64.90
i Rainures of the pulley 6
K B + M6
k position B + in min. 20
L D+ Plug size
n Rotation CW
o STAGE NO PL57
R Total length mm 161.00
Information Catalogs
POLUL SP
Type REGULATOR IR
Vacuum pump no
Info Product BN
for Ford
Notes replaces: 6g series.
replaces the following references:
GL426 FORD
GL426RM FORD
xf2u10300BC FORD
xF2U10300BD FORD
xf2z10346ba ford
Compatible with the following vehicles:
ford, US light vehicle
