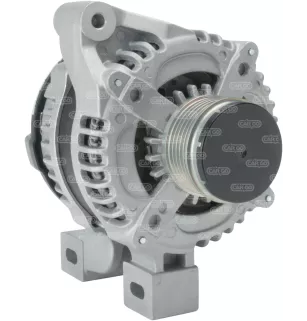

Altering 14v 120amp Denso 104210-3550, 104210-3551, Ford 1374082, Volvo 1374082

Altering 14V 120AMP ​​DENSO 104210-3550, 104210-3551, Ford 1374082, Volvo 1374082

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     120

physical information
a dist. Pulley 73.20
B Arm width 38.20
C Dist. Between support 90.00
D Diameter of the hole 8.20
e Angle paste tensioner 60
g Diameter Trou de la Patte 8.50x17.50
H Pulley DIA.     55.50
I GRAINURES OF THE PULL 5
J Radius 89.00
J Radius 2 89.00
K B + M8
k Position B + in min.     20
L D+ Plug size
n Rotation CW
o STAGE NO PL154
R Total length mm 170.00

Information Catalogs
SP/FW Pulley
Type REGULATOR IR

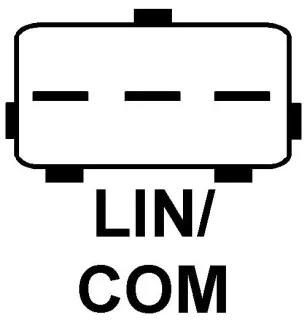

Notes This alternator has a com signal. We recommend that you check the correspondence via the reference reference.

replaces the following references:
104210-3550 Denso
104210-3551 Denso
1374082 Ford
1374082 Volvo
1684865 Volvo.
1684865 Ford
3m5t10300ja ford
3m5t10300jb ford
3m5t10300jc Ford
3m5t10300jd Ford
8676015 Volvo }
Compatible with the following vehicles:
Ford, light vehicle eu
