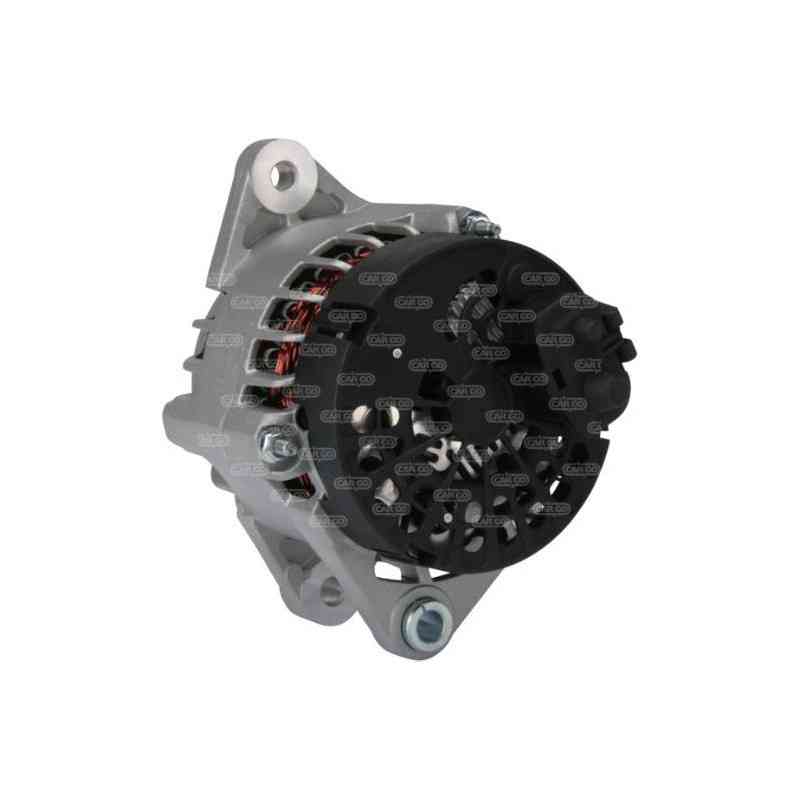

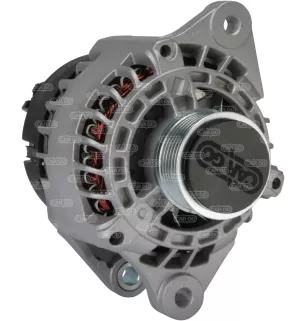

Altering 14v 120amp Denso 101210-1870, HC-Cargo 112386, Fiat 46543023, 46748353

Altering 14v 120amp Denso 101210-1870, HC-Cargo 112386, Fiat 46543023, 46748353

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     120

physical information
a dist. Pulley 44.00
B Arm width 22.60
C Dist. Between support 54.80
D Diameter of the hole 12.30
e Angle paste tensioner 3
g Diameter Trou de la Patte 10.60
H Pulley DIA.     61.50
i Rainures de la Pulley 6
J Radius 90.00
J Radius 2 90.00
K B + M8
k Position B + in min.     15
L D+ size M5
n Rotation CW
R Total length mm 204.00
Active lamp

Information Catalogs
POLUL SP/FW
FANTILLER IF
Type REGULATOR IR
Vacuum pump no
info Product BN
for Alfa Romeo, Fiat, Lancia
} Following:
101210-1870 Denso
112386 HC-Cargo
46543023 Fiat
46748353 Fiat
46809068 Fiat
46809068
60815944 Fiat
60815944 Alfa Romeo
60816954 Fiat
60816954 Alfa Romeo
63321414 Magneti Marelli
63321491
63321497 Magneti Marelli
63321501 Magneti Marelli
63321507 Magneti Marelli
63321804 Magneti Marelli
63321805 Magneti Marelli
63 Magneti Marelli
63321859 Magneti Marelli
71721512 Alfa Romeo
CA1698IR HC-PARTS

Compatible with the following vehicles:

fiat, light vehicle eu
Lancia, light vehicle eu
