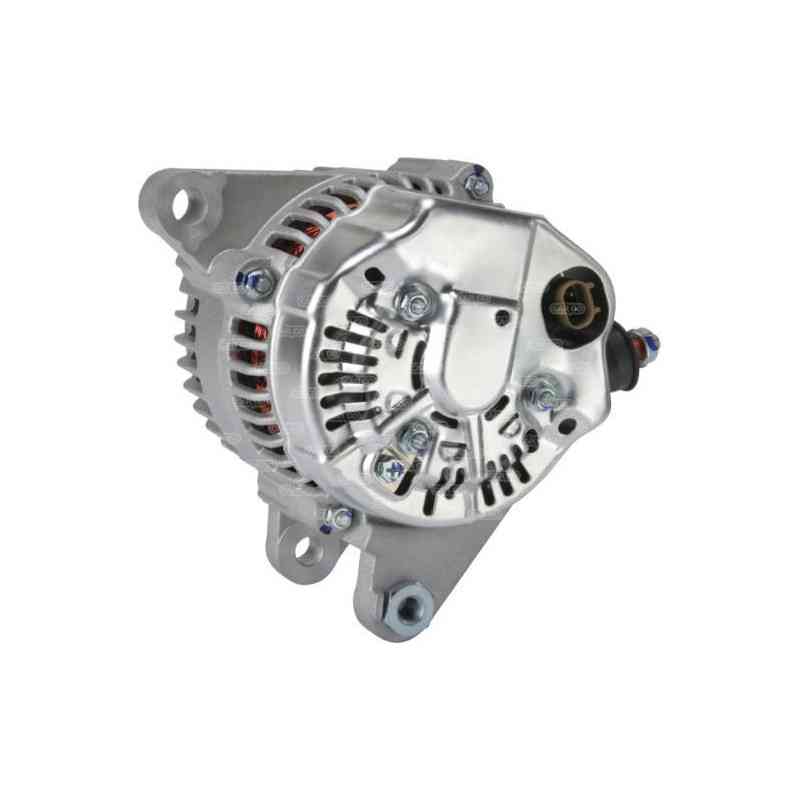

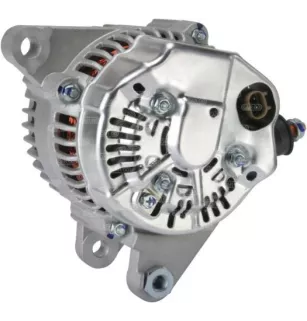

Altering 14V 110AMP DENSO 121000-3841, 121000-3842, 121000-3843, 121000-3846

Altering 14V 110AMP DENSO 121000-3841, 121000-3842, 121000-3843, 121000-3846

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     110

physical information
a dist. Pulley 28.00
B Arm width 12.80
C Dist. Between support 68.00

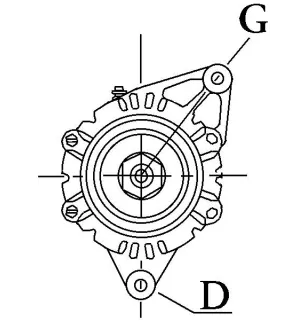

D Diameter of the hole 11.00
e Angle paste tensioner 10
g Diameter hole of the paw 12.50
h Poulie dia.     57.00
I GRAINURES OF THE PULUL 6

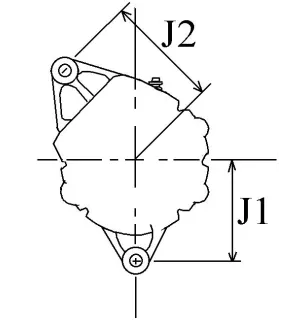

J Radius 87.00
J Radius 2 88.00
K B + M8
k Position B + in min.     15

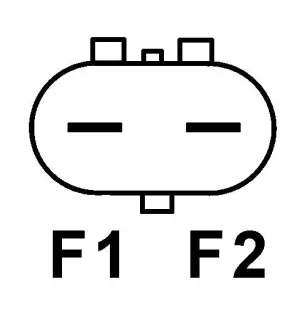

L D+ Plug size
n Rotation CW
o STAGE NO PL135
R Total length mm 180.00

Information Catalogs
POULUL SP/FW
Info Product BN

replaces the following references:
121000-3841 DENSO
121000-3842 DENSO} 121000-3843 DENSO
121000-3846 Denso
56041578AD CHRYSLER
56041578A CHRYSLER

Compatible with the following vehicles:
} Eu
