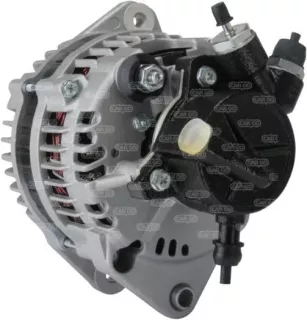

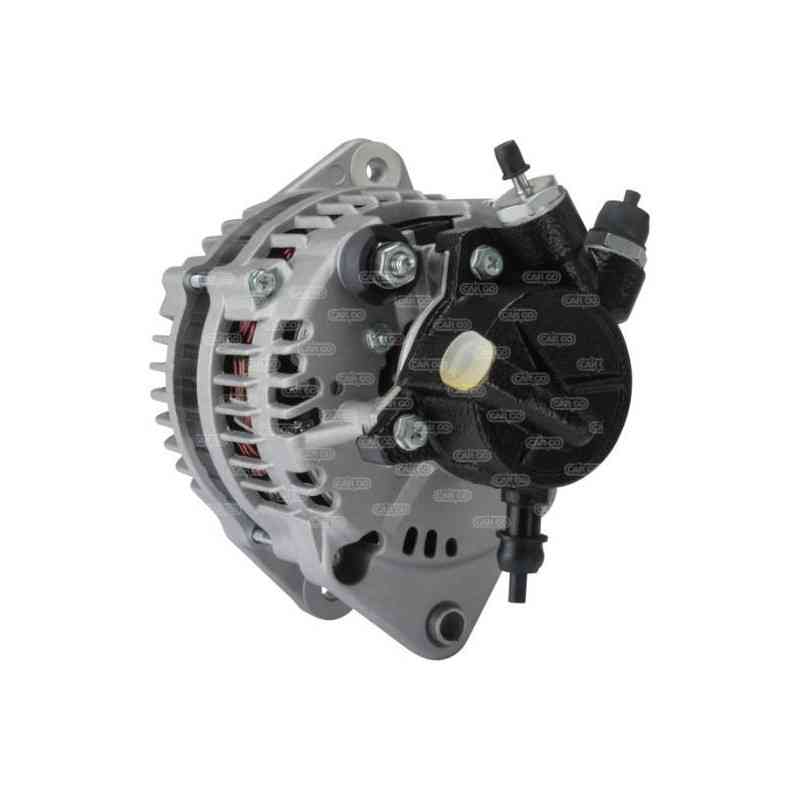

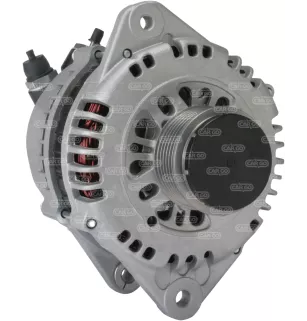

Altering 14V 100amp Opel 6204183, 6204251, Isuzu 8973551980, 8973551981

Altering 14V 100amp Opel 6204183, 6204251, isuzu 8973551980, 8973551981

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     100
terminal W

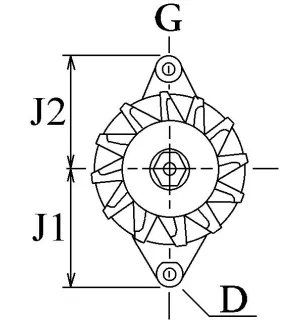

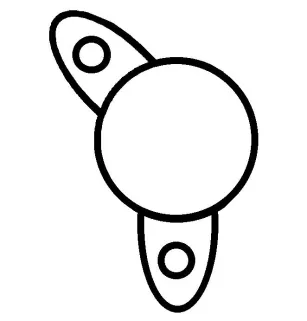

physical information
a dist. Pulley 35.50
B Arm width 13.00
C Dist. Between support 66.50
D Diameter of the hole 10.30
e Angle paste tensioner 57
g Diameter hole of the paw 8.20
h Poulie dia.     59.50
i Rainures de la Pulley 6
J Radius 90.00
J Radius 2 85.00
K B + M8
k Position B + in min.     53

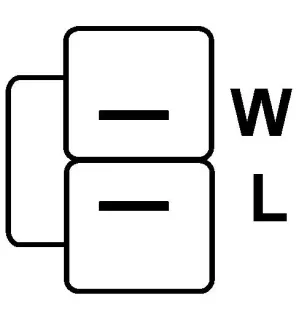

L D+ Plug size
n Rotation CW
o STAGE NO PL50
Q TAPE W PLUG
R Total length mm 224.00

Information Catalogs
POLUL SP/FW
FANTILLER IF
Type REGULATOR IR
Vacuum pump Yes
info Product BN

replaces the following references: } 6204183 OPEL
6204251 OPEL
8973551980 ISUZU
8973551981 ISUZU
8973551982 ISUZU
8973554981 ISUZU} 8980564430 ISUZU
93189495 OPEL
93189501 OPEL
9562188 OPEL
97355198 OPEL
98056443 OPEL

lr1100-503 Hitachi
LR1100-503A Hitachi
LR1100-503B Hitachi
LR1100-503C Hitachi
LR1100-503D Hitachi
LR1100-503E
LR1100-503F Hitachi
R1530089 OPEL

Compatible with the following vehicles:
OPEL, light vehicle eu
Vauxhall, light vehicle eu
}
