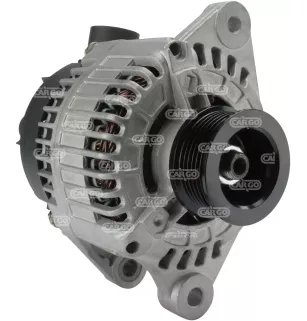

Altering 14V 100amp Fiat 46430533, 46445660, Alfa Romeo 46430533, 46445660

Altering 14V 100amp Fiat 46430533, 46445660, Alfa Romeo 46430533, 46445660

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     100

physical information
a dist. Pulley 43.40
B Arm width 22.50
C Dist. Between support 54.00
D Diameter of the hole 12.40
e Angle paste tensioner 3
g Diameter hole of the paw 10.20
h Pouelie dia.     61.80
I GRAINURES DE LA POULUL 6
J Radius 90.00
J Radius 2 90.00
K B + M8
k Position B + in min.     15
L D+ size M5
n Rotation CW
R Total length mm 203.00

Information Catalogs
Poulie SP

replaces the following references:
46430533 Fiat
46430533 Alfa Romeo
464456 Fiat} 46445660 Alfa Romeo
46457327 Fiat
46740243 Fiat
46765837 Fiat
63320226 Magneti Marelli
63320256 Magneti Marelli
63 Magneti marelli
633203333333333333333333333333333333 Magneti Marelli
63321355 Magneti Marelli
63321419 Magneti Marelli
63321436 Magneti Marelli
63321506 Magneti Marelli} 63321803 Magneti Marelli
71739603 Fiat
Ca1189ir HC-Parts

compatible with the following vehicles:
Fiat, light vehicle eu
Lancia,
