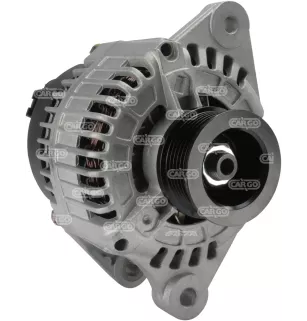

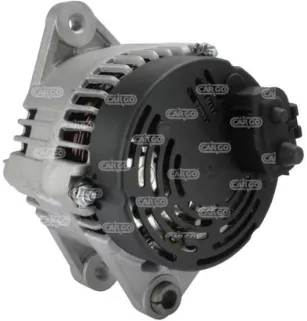

Altering 14V 100amp Bosch 0124415015, Alfa Romeo 46305329, Fiat 46305329, 46445658

Altering 14V 100amp Bosch 01244415015, Alfa Romeo 46305329, Fiat 46305329, 46445658

• Brand: Bosch
• New altering
• Guaranteed: 2 years
• without instruction
• Original quality

Characteristics:
Electric information
voltage 14
amp.     100

physical information
a dist. Pulley 44.50
B Arm width 22.60
C Dist. Between support 54.20
D Diameter of the hole 12.00
e Angle paste tensioner 3
g Diameter hole of the paw 10.30
h Poulie dia.     62.00
I GRAINURES OF THE PULL 6
J RADIUS 89.00
J Radius 2 89.00
K B + M8
k Position B + in min.     10
L D+ Size M5
n Rotation CW
R Total length mm 202.00

Information Catalogs
POLUL SP
Type regulator IR

replaces the following references:
0124415015 BOSCH
46305329 ALFA ROMEO} 46305329 Fiat
46445658 Fiat
46445658 Alfa Romeo
46765836 Alfa Romeo
46769369 Fiat
46769369 Alfa Romeo
60812535 Alfa Romeo
60812535 Fiat
60816046 Alfa Romeo
60816046 Fiat
63321232 Magneti Marelli
63321310 Magneti Marelli
633214
63321801 Magneti Marelli
7782314 Fiat
7782314 Alfa Romeo
CA1223IR HC-PARTS

Compatible with the following vehicles:
Alfa Romeo, light vehicle eu
Alfa Romeo, light vehicle Asia and Oceania
fiat, light vehicle EU
Lancia, light vehicle EU
