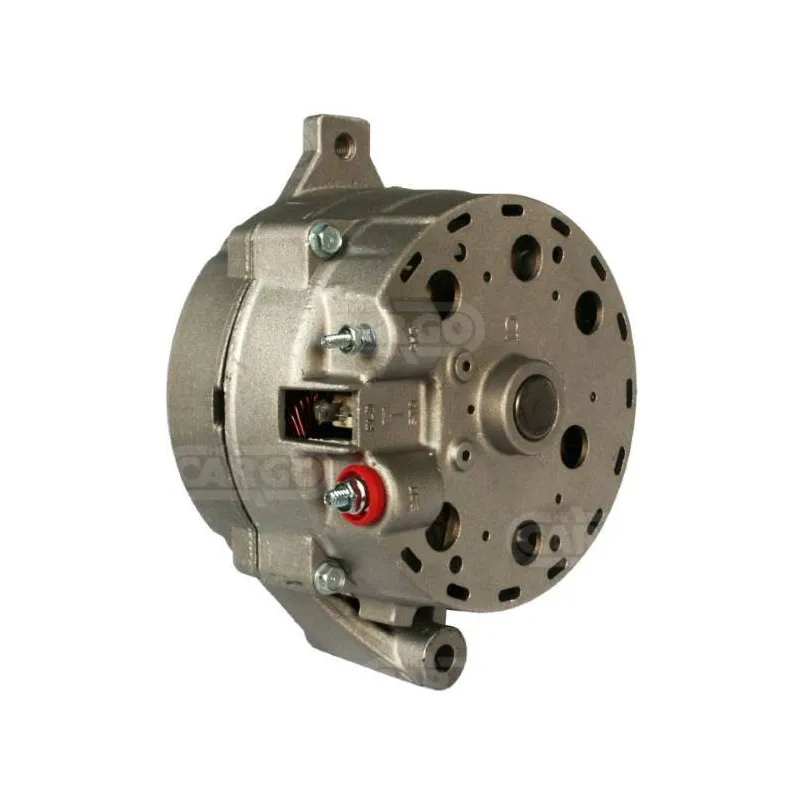

Alternator 14 Volts 90 A, Krauf ALF0928, Delco DRZ0114

SPECIFICATIONS:

Electrical Specifications

Voltage     14
Amp     90

Physical Specifications

D     Hole Diameter     11.00
G     Lug Hole Diameter     M10
B     Arm Width     76.25
E     Tensioner Angle     60
j     Radius     103.50
j     Radius 2     99.50
k     Position B +     M6
n     Rotation     Cr
o     Regulator connector     PL_NA
R     Total length mm     170.00

More information

Fan     Without
Pulley     Without

Remarks     Regulator: HC- 130506.

REPLACES THE FOLLOWING PART NUMBERS:

Waiglobal: 1-1805-44FD-9, 1-1806-42FD, 1-1806-43FD, 20-215-9.
Cargo: 112915.
Wps: 7705-12N, 7705-12R, 7705-9N, 7705-9R, 7742N, 7742N-0G.
Krauf: ALF0928.
Motorherz: ALF0928WA.
Ford: D2OF10300AA, D2OF10300GA, D2OF10346BA, D2OZ10346B, D2ZF10346BB, D3OF10300AA, D3VF10300A, D3VF10300AA, D3VF10300AB, D3VF10300BA, D3VF10346A, D3VF10346BA, D3VY10346A, D4OF10300EA, D4OF10346DA, D4OZ10346D, D4TF10300DA, D4TZ10346A, D50F10300BA, D52F10300BA, D5OF10300AA, D5OF10300BA, D5UF10300AA, D5ZF10300AA, D5ZF10300BA, D6UF10300AA, D70F10300BA, D7OF10300AA, D7OF10300BA, D7OF10300CA, D7OF10300DA, D7OF10300EA, D7OF10346AA, D7OF10346BA, D7OZ10346A, D7OZ10346B, D7UF10300BA, D7UF10300CA, D7VF10346AA, D7VZ10346A, D7ZF10300B, D7ZF10300BA, D7ZF10300C, D7ZF10300CA, D8BF10346DA, D8VF10300BA, D8VF10300CA, D8ZF10300FA, D9AF10300AA, D9OF10300AA, D9UF10300FA, D9UF10300GA, E1AF10300BA, E1NF10300AA, E1UF10300AA, E1VF10346AA, E1VZ10346A, E3UF10300AB, E3ZF10300AA, E5VF10300AA, E6DF10300FA, E6DF10300FB, E6DF10300HA, E7DF10300EA, E7DF10300EB, E7DF10300FA, E7PF10346RA, E7TF10300JA, E7TF10300NA, E7VF10300AA, E7VF10300BA, E8DF10300CA, E8DF10300DA, E8DF10300DE, E8DZ10300B, E8PF10346BA, E8PZ10346B, E9DF10300DA, E9DF10300EA, E9PF10346DA, E9PZ10346E, E9TF10300AA, E9UF10300AA, E9UF10300CA, F0AU10300AA, F0DU10300CA, F0DU10300DA, F0LU10300AA, F0PU10346HA, F0PU10346JA, F0PU10346KA, F0PU10346RA, F0TU-10300AA, F0TU10300AA, F0TU10300BA.
Delco: DRZ0114.
HC-Parts: UA928, UA928IR.
