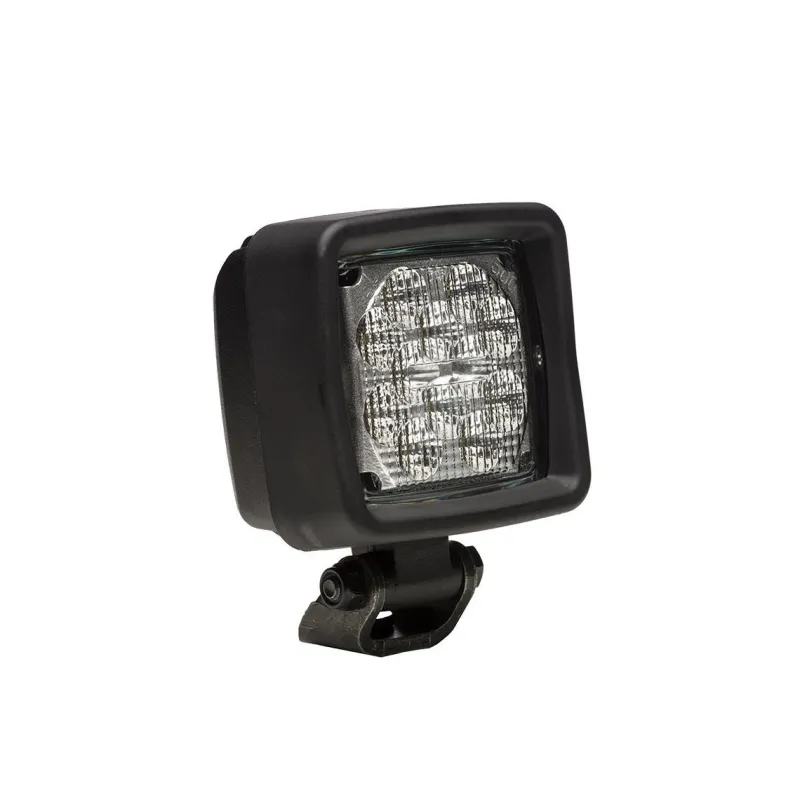

SHD 850 LED - Heavy LED work light 12/24V VIGNAL D14295

• BRAND VIGNAL ORIGIN
• 2-year warranty

SHD 850 LED - Heavy LED work light 12/24V VIGNAL D14295

CHARACTERISTICS:

Brand ABL
Sector of activity Trucks and heavy goods vehicles, Trailers and semi-trailers, Utility vehicles, Priority vehicles, Handling and forklifts, Construction and construction machinery, Forestry
Flood light beam
Product Type Heavy LED Work Light
Voltage 12 - 24V
LED Source
Color Amber, Red, Blue, Crystal
Amperage 0.46 AMP at 24V
Connector AMP 2-way, DT 2-way
Cabochon Material Tempered Glass
Housing Material Aluminum
Shape Square
Length 102 mm
Width 80 mm
Height 98 mm
EMC ISO 13766 - ISO 14982 - ISO 12985 - CISPR25
IP Protection IP68 - IP69K
Operating Temperatures -40°C to +85°C
Consumption 11W
Weight 0.9 Kg
Effective Lumen 850 Lumen
Mounting Pedestal, Suspended
Color Temperature 6000°K
Load Dump 36V CONTINUOUS/ 72V 100ms/ 1800V 50µs
Polarity Protected against voltage reversals
Electronic Thermal Management Full output at +35°C ambient, 20 % dimmed at + 50°C ambient
Salt Fog Test ISO 9227
Vibration Resistance 15 Grms, from 24Hz to 2000Hz
Shock Resistance 60G
Warranty 30,000 operating hours or 5 years
Detail reference D14160 (crystal, tempered glass, DT 2-way); D14295 (amber, tempered glass, DT 2-way)
