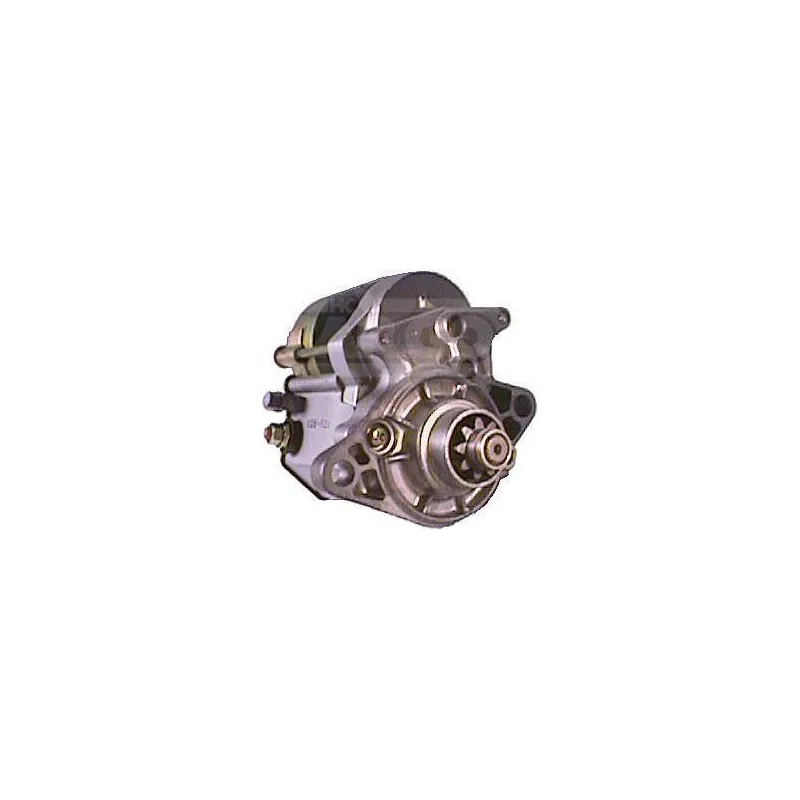

Anlasser 12 Volt, Honda 06314P2C305R, 06314P2E305R, Bosch 0986014051, Denso 128000-0280

SPEZIFIKATIONEN:

Elektrische Spezifikationen
Spannung 12
KW 1,0

Physikalische Spezifikationen
A     Montageflansch     75,00
B     Starterabstand 32,40
F     Abstand/hinten     129,25
G     Abstand/vorne     45,00
H     Anzahl der Zähne     9
I     B+     M8
N     Kronentyp    Gr
O     Entfernung mm 112,00
P     Rotation     Cr
R     Gesamtlänge mm     178,00

Weitere Informationen
Anzahl Befestigungslöcher     2 (0)
Trägerraketentyp     Stahl
Ölgedichtet     Nein
Wasserdicht     Nein

ERSETZT DIE FOLGENDE TEILENUMMER:

Honda: 06314P2C305R, 06314P2E305R, 31200-P01-003, 31200-P28-G02, 31200-P29-902, 31200-P29-903, 31200-P2A-004, 31200-P2A-014, 31200-P2C-004, 31200-P2C-901, 31200-P2E-901, 31200-PE0-461, 31200-PE0-661, 31200-PE0-662, 31200-PE0-663, 31200-PE0-664, 31200-PE0-665, 31200-PEO-661, 31200-PG6-004, 31200-PG6-034, 31200-PG6-663, 31200-PG6-673, 31200-PM1-005, 31200-PM3-003, 31200-PM3-0032, 31200-PM3-004, 31200-PM3-101, 31200-PO1-005, 312009O3902, 31200P01003, 31200P01003ES, 31200P01015, 31200P2C004, 31200P2C004RM, 31200P2C901, 31200P2E901, 31200P71901, 31200PC0884, 31200PC0884ES, 31200PD1043, 31200PE0461, 31200PE0661, 31200PE0661ES, 31200PE0662, 31200PE0663, 31200PE0664, 31200PE0665, 31200PE0667, 31200PE09010, 31200PE09020, 31200PEO661, 31200PEO665, 31200PG6004, 31200PG6034, 31200PG6034ES, 31200PG6663, 31200PG6673, 31200PJ7006, 31200PK200, 31200PK202, 31200PM1005, 31200PM1005ES, 31200PM300, 31200PM3003, 31200PM30032, 31200PM3003ES, 31200PM3004, 31200PM3101, 31200PM3J02ES, 31200PM3J03, 31200PO100, 31200PO1003, 31200PO10031, 31200PO1005, 31200PO300, 31200PO3005, DR4R6, DRDFE, DRFL0, DRKIE, DRLF0, DRLFN, DRLFO, DRLI3, DRLIT, P2A1K.
Bosch: 0986014051, 0986014051090, 0986020461, 9000692073.
Cargo: 113399.
Denso: 128000-0280, 128000-0281, 128000-5080, 128000028, 1280000280, 1280000281, 128000508, 1280005080, 1280009121, 228000-0210, 228000-0211, 228000021, 2280000210, 2280000211.
Wps: 16905, 17587N, 17693N, 17721, 17721N.
Waiglobal: 2-1012-ND, 2-1012-ND-2, 2-1798-MT, 2-1798-MT-9, 2-1941-MT, 2-1941-MT-2, 2- 2258-MT, 2-2258-MT-9.
Valeo: 455578, 458575, VS247.
Magneti marelli: 943241003010, 944280524240.
Delco: DRS4051.
Rover-Gruppe: GXE4584.
Iskra: ISJ0008.
HC-Teile: JS319.
Lucas: LRS00719, LRS01661.
Mitsuba:SM302-07, SM302-10, SM302-12, SM302-15, SM302-25, SM30207, SM30210, SM30212, SM30215,
SM30225, SM402-17, SM402-17N, SM402-21N, SM422-07, SM422-09, SM422-10, SM42207, SM42209, SM42210,
SM442-10.

KOMPATIBEL MIT DEN FOLGENDEN FAHRZEUGEN:

HONDA BALLADE IV (EC, ED, EE) 1,4 L (EC9) (1987-1989)
HONDA BALLADE IV (EC, ED, EE) 1.3 (EC8) (1987-1989)
HONDA BALLADE IV (EC, ED, EE) 1.6 i 16V (ED7) (1987-1991)
HONDA BALLADE IV (EC, ED, EE) 1.6 i 16V (1987-1991)
HONDA BALLADE IV (EC, ED, EE) 1.5 i 16V (ED6) (1988-1991)
HONDA BALLADE IV (EC, ED, EE) 1.5 i 16V (1988-1991)
HONDA BALLADE IV (EC, ED, EE) 1,3 16 V (EC8) KAT (1989-1991)
HONDA BALLADE IV (EC, ED, EE) 1.6 i 16V Vtec (EE9) (1989-1991)
HONDA BALLADE IV (ED) 1.4 L (ED2) (1987-1989 )
HONDA BALLADE IV (ED) 1.3 (1987-1989)
HONDA BALLADE IV (ED) 1.6 i 16V (ED4) (1987-1991)
HONDA BALLADE IV (ED) 1.5 i 16V (ED3) (1987-1991)
HONDA BALLADE IV (ED) 1.6 i 16V (ED4) (1987-1991)
HONDA BALLADE IV (ED) 1.6 i 16V (1987-1991)
HONDA BALLADE IV (ED) 1.5 i 16V (1987-1991)
HONDA BALLADE IV (ED) 1.6 16V 4x4 (1987-1991)
HONDA BALLADE IV (ED) 1.6 i 16V 4x4 (1989-1991)
HONDA Ballade VI (EJ, EK) 1.4 i (EJ9) (1995-2001)
HONDA Ballade VI (EJ, EK) 1.5 i (EK3) (1995-2001)
HONDA Ballade VI (EJ, EK) 1.6 i Vtec (1995-2001)
HONDA CITY I (AA) 56 1,2 (1983-1986)
HONDA CITY I (AA) 45 1,2 (1984-1986)
HONDA CITY I (AA) 55 1.2 (1984-1986)
HONDA CIVIC I (AF, AS) 1.5 i (AF) (1983-1986)
HONDA CIVIC I (AF, AS) 1.6 i 16V (AS) (1986-1987)
HONDA CIVIC I Shuttle (AN, AR) 1.5 (AN) (1983-1987)
HONDA CIVIC I Shuttle (AN, AR) 1.5 4WD (AR) (1985-1987)
HONDA CIVIC II Shuttle (EE) 1.6 i 16V 4WD (EE4) (1988-1989)
HONDA CIVIC II Shuttle (EE) 1.5 i 16V (EE2) (1988 ) -1991)
HONDA CIVIC II Shuttle (EE) 1.4 i 16V (EE1) (1988-1992)
HONDA CIVIC II Shuttle (EE) 1.6 4x4 (1988-1992)
HONDA CIVIC II Shuttle (EE) 1.6 i 16V 4WD (EE4) (1988-1995)
HONDA CIVIC III Schrägheck (AL, AJ, AG, AH) 1.3 (AG) (1983-1987)
HONDA CIVIC III Hatchback (AL, AJ, AG, AH) 1.5 GL (AH) (1983-1987)
HONDA CIVIC III Hatchback (AL, AJ, AG ) , AH) 1.2 (AL) (1984-1987)
HONDA CIVIC III Hatchback (AL, AJ, AG, AH) 1.5 GT (AH) (1985-1987)
HONDA CIVIC III Hatchback (AL, AJ, AG, AH) 1.5 GTI (AH) (1986–1987)
HONDA CIVIC III (AM, AK, AU) 1.3 (1983–1987)
HONDA CIVIC III (AM, AK, AU) 1.5 GL (1983 ) -1987)
HONDA CIVIC III (AM, AK, AU) 1.2 (1985–1987)
HONDA CIVIC III (AM, AK, AU) 1.5 GT (1985–1987)
HONDA CIVIC III (AM, AK, AU) 1.5 GTI (1986–1987)
HONDA CIVIC IV Hatchback (EC, ED, EE) 1,4 L (EC9) (1987–1989)
HONDA CIVIC IV Hatchback (EC, ED, EE) 1.3 (EC8) (1987–1989)
HONDA CIVIC IV Hatchback (EC, ED, EE) 1.6 i 16V (ED7) (1987–1991)
HONDA CIVIC IV Schrägheck (EC, ED, EE) 1.6 i 16V (1987-1991)
HONDA CIVIC IV Schrägheck (EC, ED, EE) 1.5 i 16V (ED6) (1988-1991)
HONDA CIVIC IV Schrägheck (EC, ED, EE) 1,5 und 16V (1988-1991)
HONDA CIVIC IV Hatchback (EC, ED, EE) 1.3 16 V (EC8) KAT (1989-1991)
HONDA CIVIC IV Hatchback (EC, ED, EE) 1.6 i 16V Vtec (EE9) (1989–1991)
HONDA CIVIC IV (EG) 1.3 16V (EG3) (1991-1995)
HONDA CIVIC IV (EG) 1.5 i 16V (EG4) (1991-1995)
HONDA CIVIC IV (ED) 1.4 L (ED2 ) ) (1987–1989)
HONDA CIVIC IV (ED) 1.3 (1987-1989)
HONDA CIVIC IV (ED) 1.6 i 16V (ED4) (1987-1991)
HONDA CIVIC IV (ED) 1.5 i 16V (ED3) (1987- 1991)
HONDA CIVIC IV (ED) 1.6 i 16V (ED4) (1987-1991)
HONDA CIVIC IV (ED) 1.6 i 16V (1987-1991)
HONDA CIVIC IV (ED) 1.5 i 16V (1987-1991)
HONDA CIVIC IV (ED) 1.6 16V 4x4 (1987-1991)
HONDA CIVIC IV (ED) 1.6 i 16V 4x4 (1989-1991)
HONDA CIVIC Mk IV купе (EJ) 1.5 i LSi (EJ2) (1993-1995)
HONDA CIVIC Mk IV Coupe (EJ) 1.6 i (EJ6) (1994-1995)
HONDA CIVIC Mk IV (EG, EH) 1.5 i 16V (EG8) (1991-1995)
HONDA CIVIC Mk IV (EG, EH) 1,6 16V Vtec (EH9) (1991–1995)
HONDA CIVIC Mk V Н(EJ, EK) 1.5 i (EK3) (1995–2001)
HONDA CIVIC V Hatchback (EG) 1.3 16V (EG3) ( 1991–1995)
HONDA CIVIC V Hatchback (EG) 1.5 i 16V (EG4) (1991-1995)
HONDA CIVIC V Coupe (EJ) 1.5 i LSi (EJ2) (1993-1995)
HONDA CIVIC V Coupe (EJ) 1.6 i (EJ6) (1994-1995)
HONDA CIVIC V (EG, EH) 1.5 i 16V (EG8) (1991-1995)
HONDA CIVIC V (EG, EH) 1.6 16V Vtec (EH9) (1991-1995 ) )
HONDA CIVIC VI Schrägheck (EJ, EK) 1.5 i (EK3) (1995–2001)
HONDA CIVIC VI Coupe (EJ, EM1) 1.6 i Vtec (1996–2000)
HONDA CIVIC VI Coupe (EJ, EM1) 1.6 i (1996 ) -2000)
HONDA CIVIC VI (EJ, EK) 1.4 i (EJ9) (1995-2001)
HONDA CIVIC VI (EJ, EK) 1.5 i (EK3) (1995-2001)
HONDA CIVIC VI (EJ, EK) 1.6 i Vtec (1995-2001)
HONDA CONCERTO (HW) 1.4 (1989-1992)
HONDA CONCERTO (HW) 1.6 (1989-1992)
HONDA CONCERTO (HW) 1.5 i 16V (1989- 1995)
Honda Concerto (HW) 1.6 i 16V (1989-1995)
Honda Concerto (HW) 1.6 16V (1989-1995)
Honda Concerto (HWW) 1.4 (1989-1992)
Honda Concerto (HWW) 1.5 i 16V (1989-1995)
HONDA CONCERTO (HWW) 1.6 i 16V (1989-1995)
HONDA CONCERTO (HWW) 1.6 16V (1989-1995)
HONDA CONCERTO (HWW) 1.6 i 16V (1989-1995)
HONDA CRX I (AF, AS) 1.5 i (AF) (1983-1986)
HONDA CRX I (AF, AS) 1.6 i 16V (AS) (1986-1987)
HONDA CRX II (ED, EE) 1.6 i 16V (1987-1988)
HONDA CRX II (ED, EE) 1.6 i 16V (ED9) (1987-1989)
HONDA CRX II (ED, EE) 1.6 i 16V (ED9) ( 1987-1992)
HONDA INTEGRA (DA) 1.5 (1985-1989)
HONDA INTEGRA (DA) 1.6 (DA1, DA3) (1986-1989)
HONDA JAZZ I (AA) 56 1.2 (1983-1986)
HONDA JAZZ I (AA) 45 1.2 (1984-1986)
HONDA JAZZ I (AA) 55 1.2 (1984-1986)< br />ROVER 200 (XW) 216 GSi (1989-1995)
ROVER 200 (XW) 216 GTi (1990-1995)
ROVER 200 Cabrio (XW) 216 (1992-1999)
ROVER 400 (XW) 416 GSI (1990-1995)
ROVER 400 (XW) 416 GTI (1990-1995)
