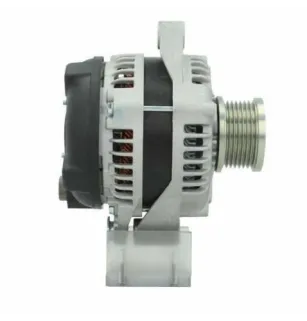

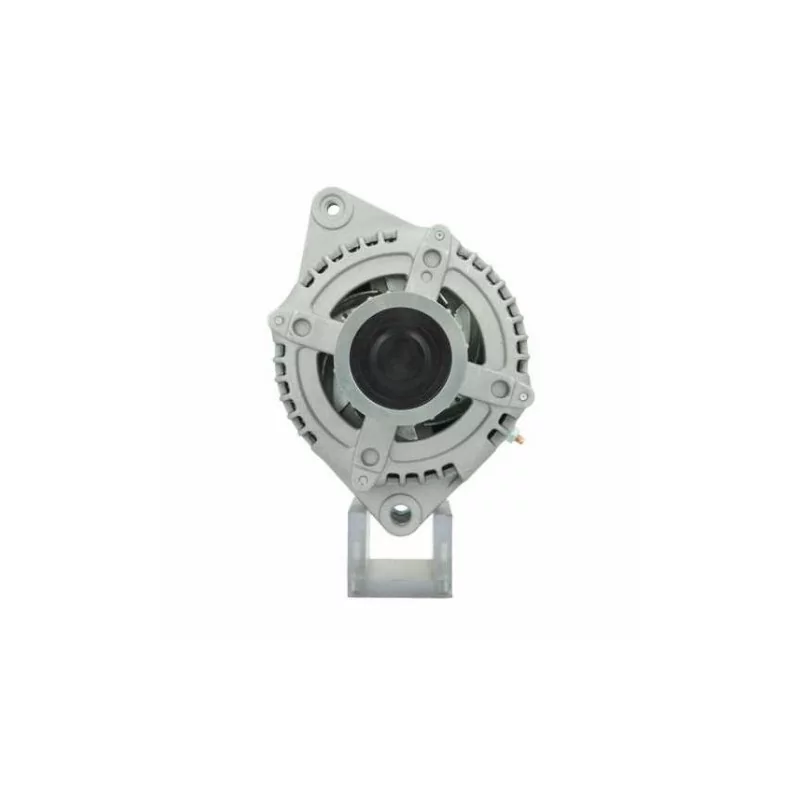

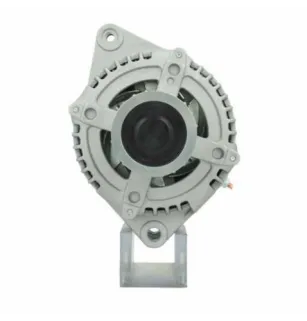

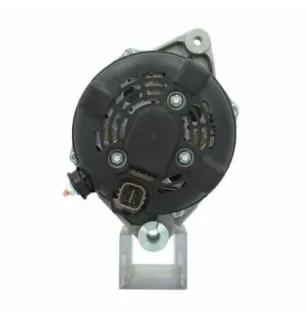

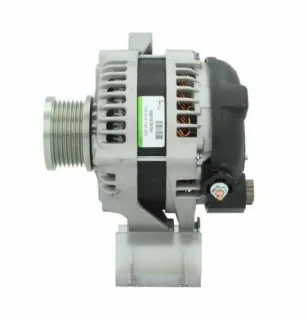

Lichtmaschine Denso 104210-5440, 104210-3410, 104210-3411 Toyota Land Cruiser
(bearbeiten im Modul "Kundenvorteile")
(bearbeiten im Modul "Kundenvorteile")
(bearbeiten im Modul "Kundenvorteile")
SPEZIFIKATIONEN:
Elektrische Spezifikationen
Spannung 14
Ampere 100
Physikalische Spezifikationen
D Lochdurchmesser 10,50
G Durchmesser des Laschenlochs M8
B Armbreite 42,00
E Spannpastenwinkel 56
H Riemenscheibendurchm. 58,00
A Dist. Riemenscheibe 95,00
i Riemenscheibenrillen 7
j Radius 83,00
j Radius 2 86,00
k Position B + M6
n Rotation. Cr
o Regleranschluss PL78
Anschlusstyp S-IG-L-DF/DFM
ERSETZT DIE FOLGENDEN REFERENZEN:
Denso: 104210-3410, 104210-3411, 104210-5440, 104210-5441, 104210-5442, 1042103410, DAN1070.
Fracht: 113969.
Motorherz: 113969CN.
Messmer: 210775.
Toyota: 27060-30060, 27060-30130, 2706030060.
Krauf: ALN9969.
HC-Teile: CA2069IR.
Delco: DRA0246.
Lucas: LRA03067.
FAHRZEUGE:
Toyota Landcruiser
TOYOTA HIACE / COMMUTER IV (TRH2_, KDH2_) 2.5 D-4D 4WD (2005-...)
TOYOTA HIACE IV (LH1_) 2.5 D-4D (2001-2006)
TOYOTA HIACE IV (LXH1_, LH1_, RZH1_) 2,5 D-4D (2001-2006)
TOYOTA HIACE IV (LXH1_, RZH1_, LH1_) 2,5 D-4D (2001-2006)
TOYOTA LAND CRUISER (KDJ12_, GRJ12_) 3,0 D-4D (KDJ120 ), KDJ125) (2002-...)
TOYOTA LAND CRUISER (KDJ12_, GRJ12_) 3.0 D-4D (KDJ120, KDJ150, KDJ125) (2003-2010)
TOYOTA LAND CRUISER (KDJ12_, GRJ12_) 3.0 D-4D (KDJ120, KDJ125) (2004-2010)
TOYOTA LAND CRUISER (LJ12_, KDJ12_, KZJ12_, GRJ12_, TRJ12_) 3.0 D-4D (KDJ120, KDJ125) (2002-...)
TOYOTA LAND CRUISER (LJ12_, KDJ12_, KZJ12_, GRJ12_, TRJ12_) 3.0 D-4D (KDJ120, KDJ150, KDJ125) (2003-2010)
TOYOTA LAND CRUISER (LJ12_, KDJ12_, KZJ12_, GRJ12_, TRJ12_) 3.0 D-4D (KDJ120, KDJ125) (2004-2010)
TOYOTA LAND CRUISER 150 (KDJ15_, GRJ15_) 3.0 D-4D (2010-...)
TOYOTA LAND CRUISER PRADO (KDJ15_, GRJ15_) 3.0 D-4D (2010-...)
