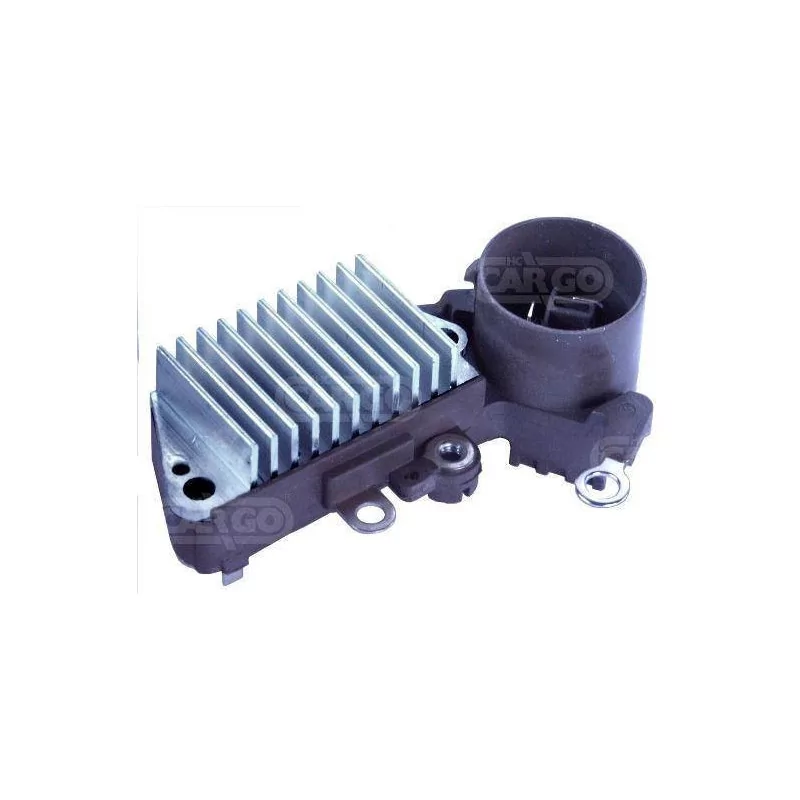

14 Volt regulator, Bosch 0986192022, Suzuki 32500-82610, Magneti marelli 943241001

FEATURES:

Electrical Specifications

Voltage     14
Voltage Setting     14.5

Physical Specifications

E     Dist. holes mm     63.50
Regulator connector     PL11

More information

Notes     Repair circuit: HC- 133241.

REPLACES THE FOLLOWING PART NUMBERS:

Bosch: 0986192022.
Ika: 1.6320.1.
Remco: 1181349.
Denso: 126000-0410, 126000-0411, 126000-0470, 1260000410, 1260000411, 1260000470.
Lucas: 21511126, UCJ402.
Honda: 31500-PE0-003, 31500-PEO-003, 31500PEO003.
Suzuki: 32500-82610, 3250082610.
Waiglobal: 35-8205-3, 35-8210.
Magneti marelli: 943241001, AMP0826, MSR1001.
Krauf: ARN6219.
Transpo: IN219.
Mario Ghibaudi: RTR8050.
Mobiletron: VR-H2005-7, VR-H2005-7A.

COMPATIBLE WITH THE FOLLOWING ALTERNATORS:

Bosch: 0123510061.
Denso: 100211-1400, 100211-1410, 100211-1411, 100211-2200, 100211-2201, 100211-2231, 100211-2290, 100211-2320, 100211-3800, 100211-3810, 100211-9410, 100211-9720, 1002111410, 1002111411, 1002112200, 1002112201, 1002112231, 1002112290, 1002112320, 1002113800, 1002113810, 1002119410, 1002119720, 101211-5280, 1012115280.
Isuzu: 8941566720, 8941566721, 8944139970.
Suzuki: 9605-1973, 9605-4116.
